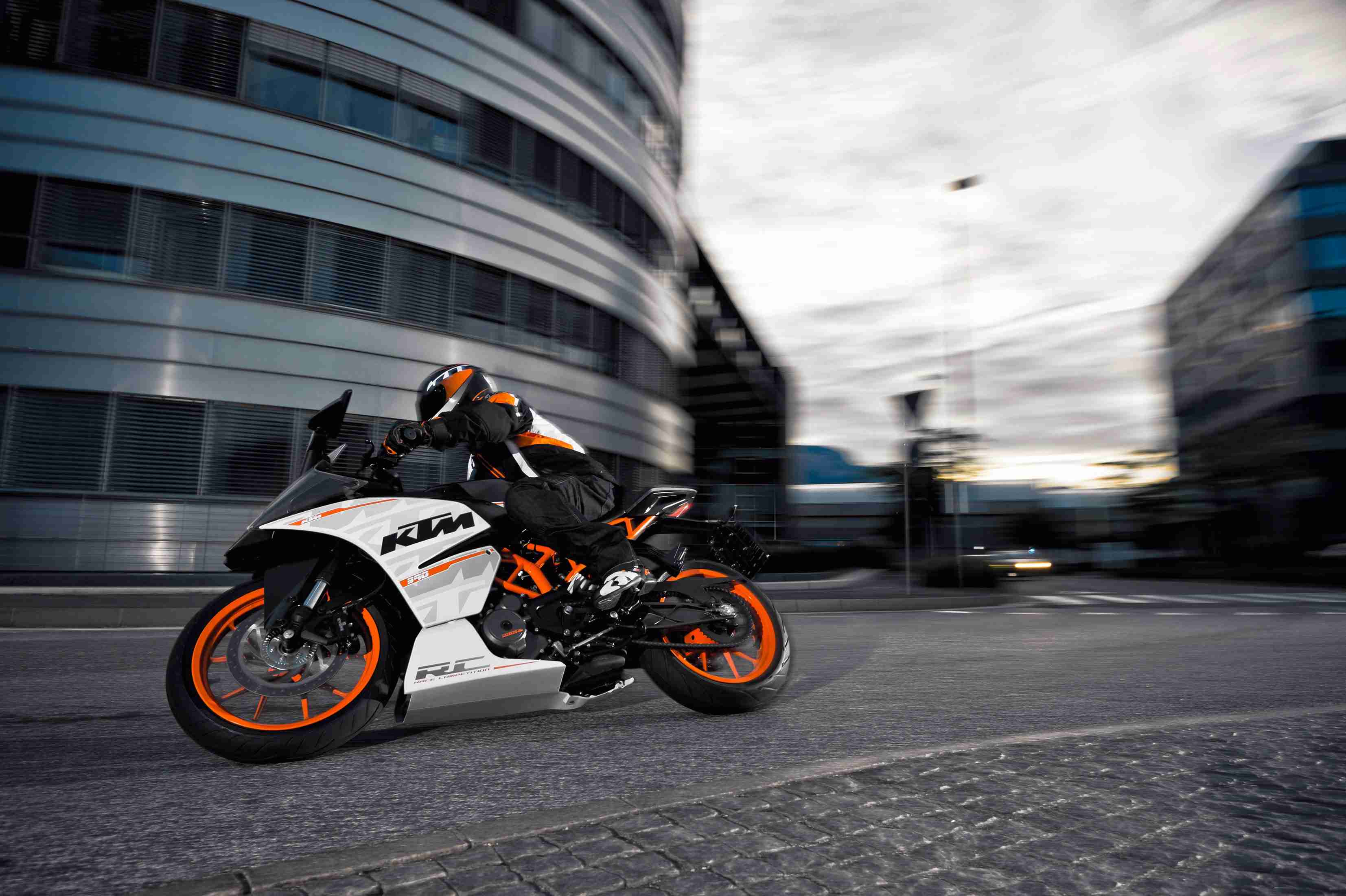

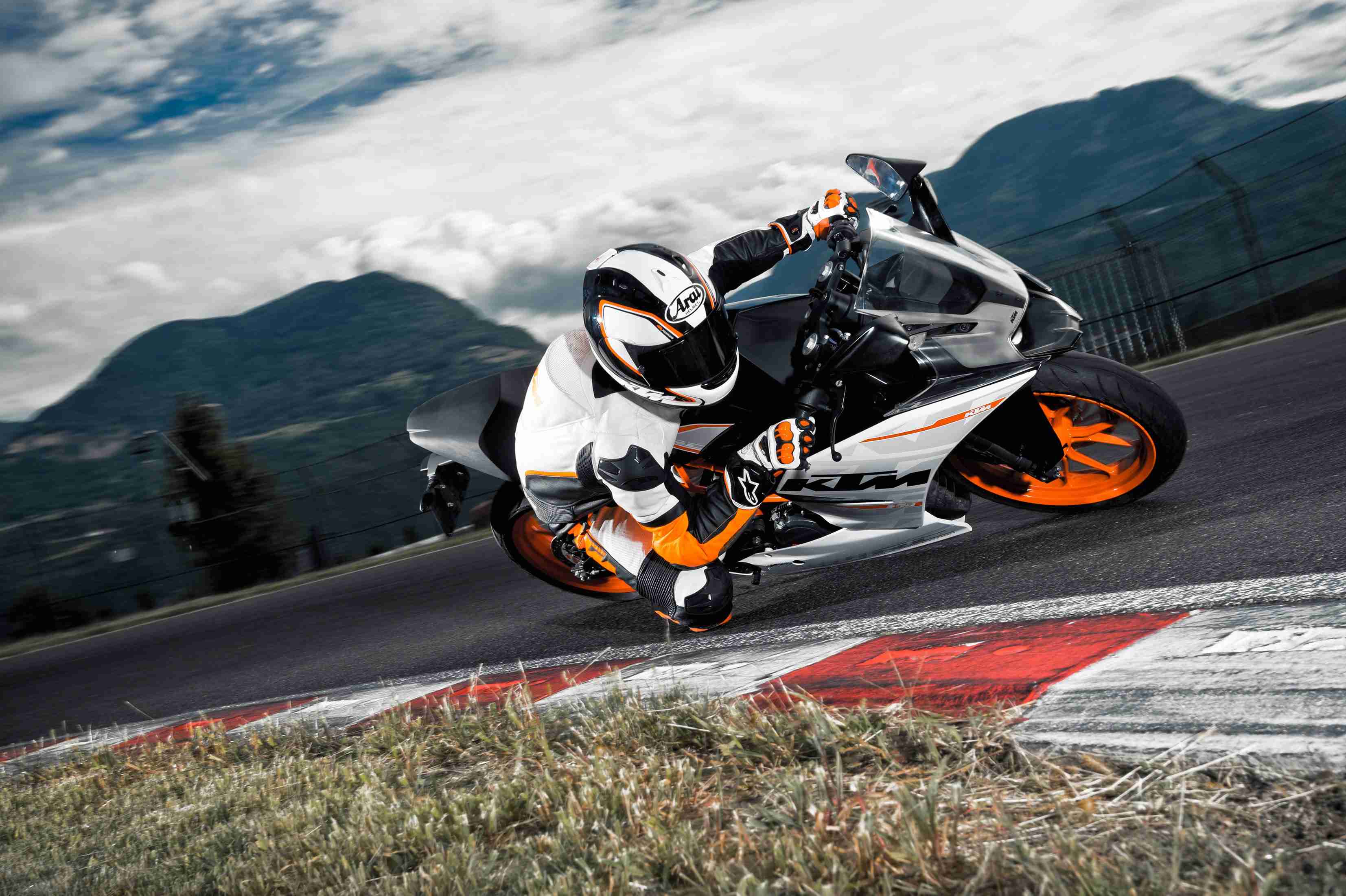

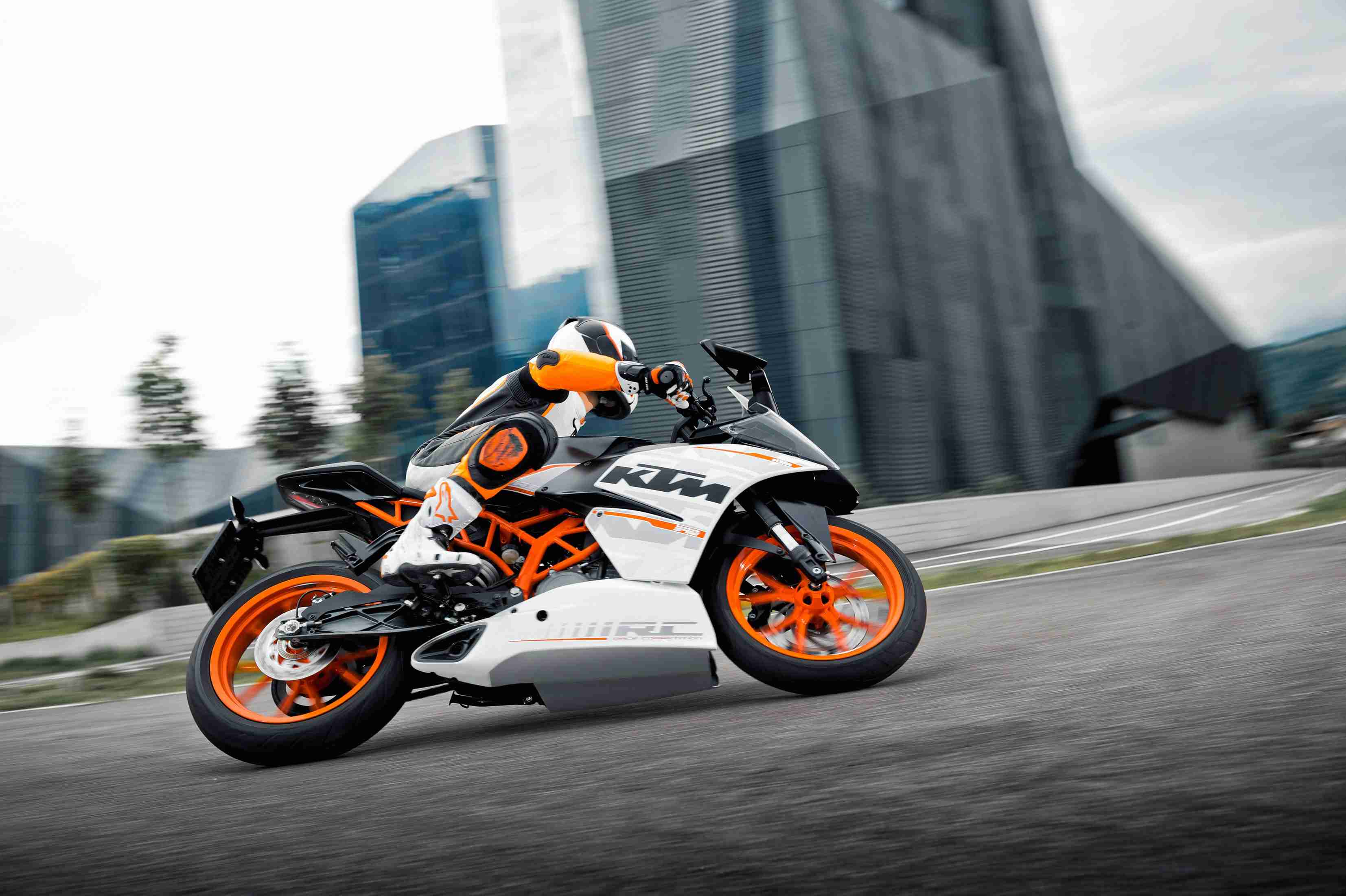

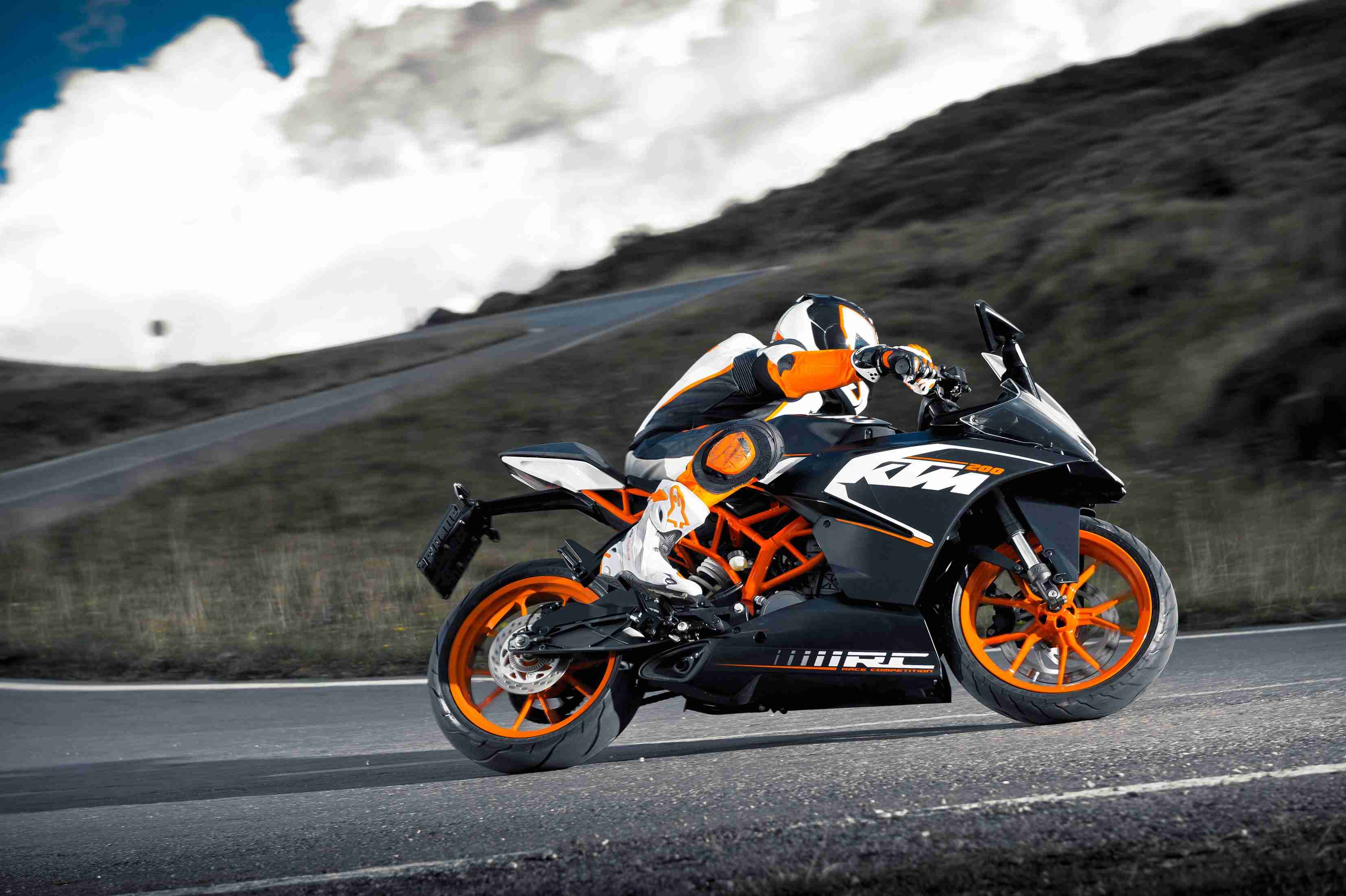

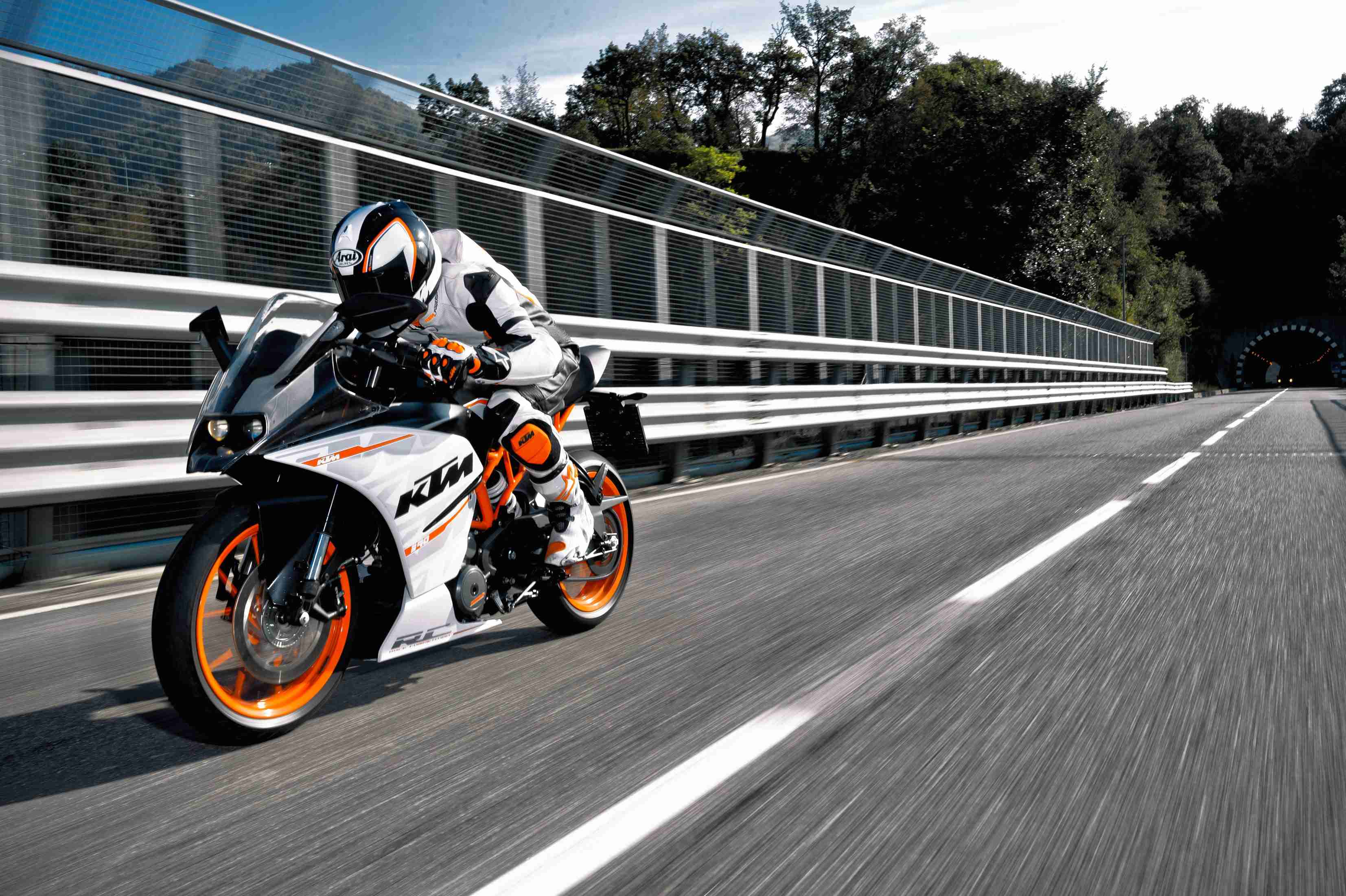

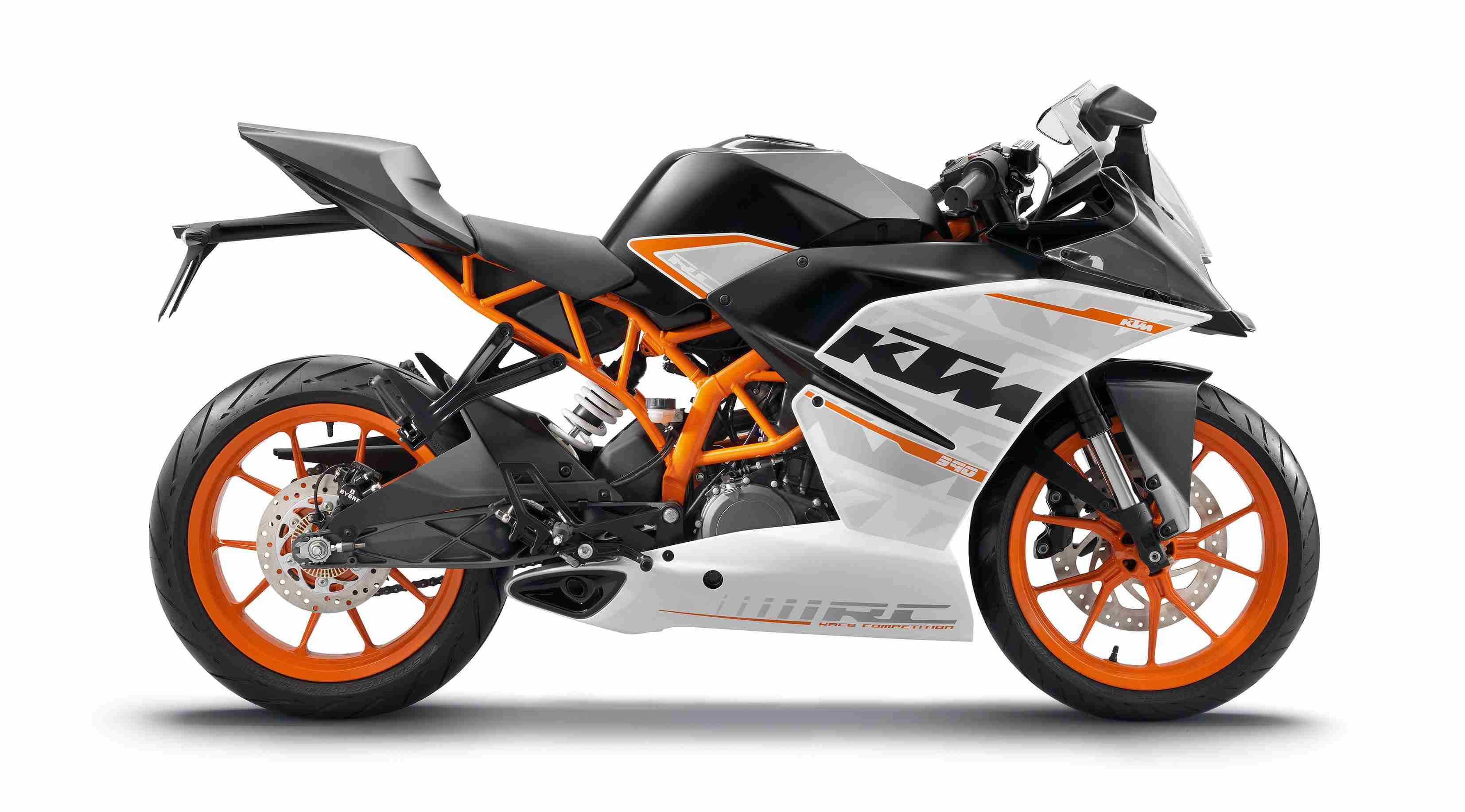

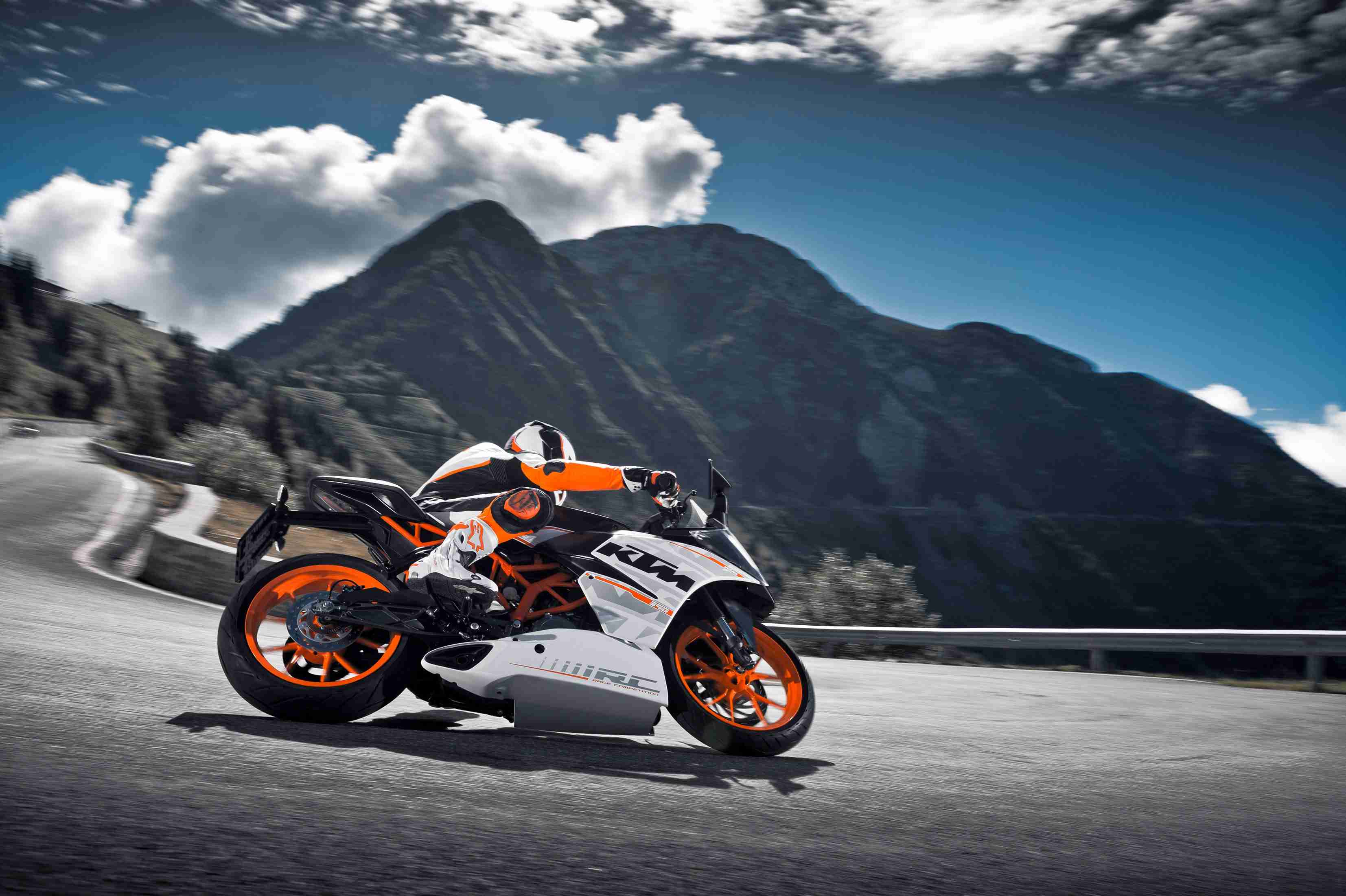

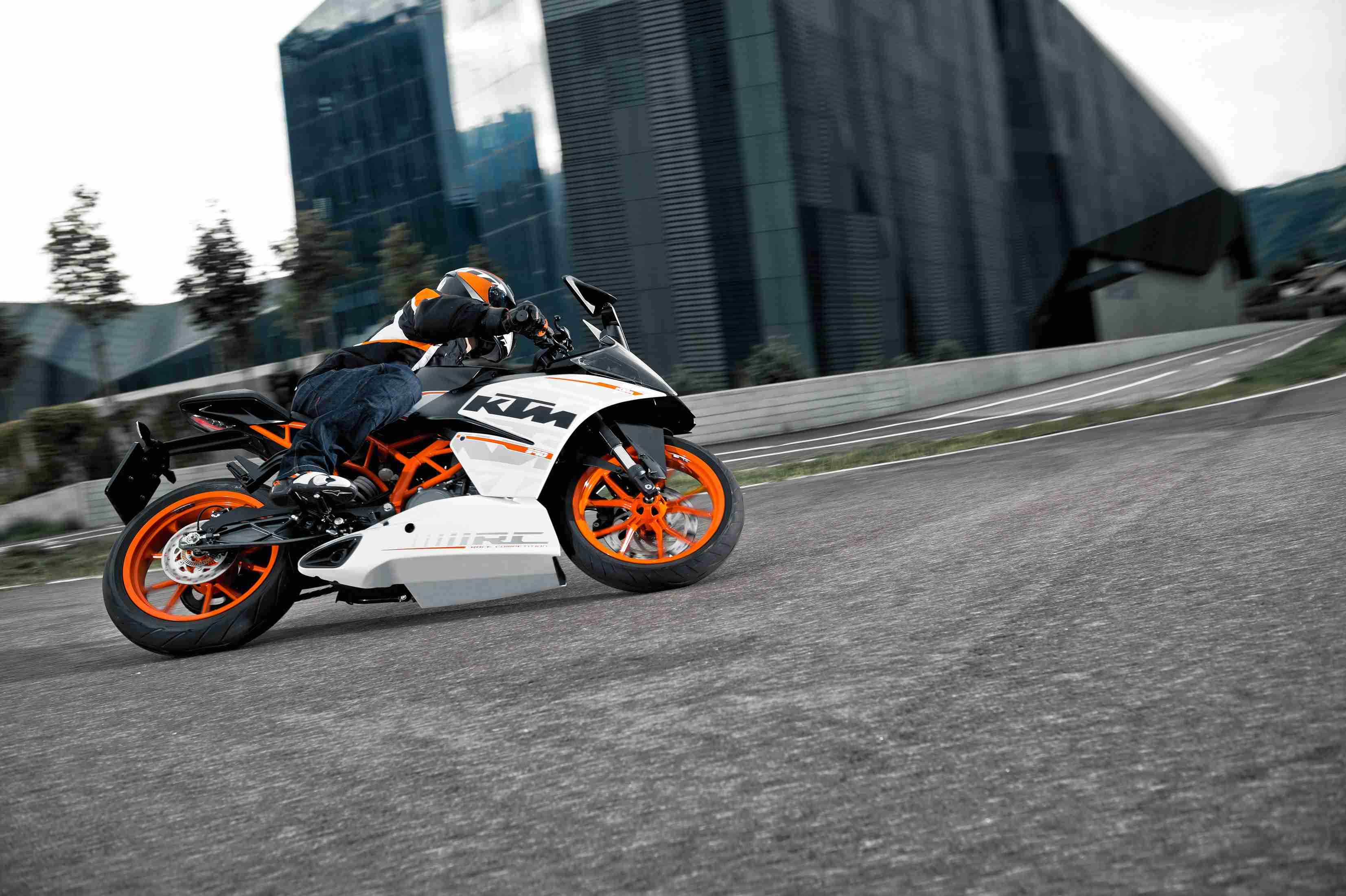

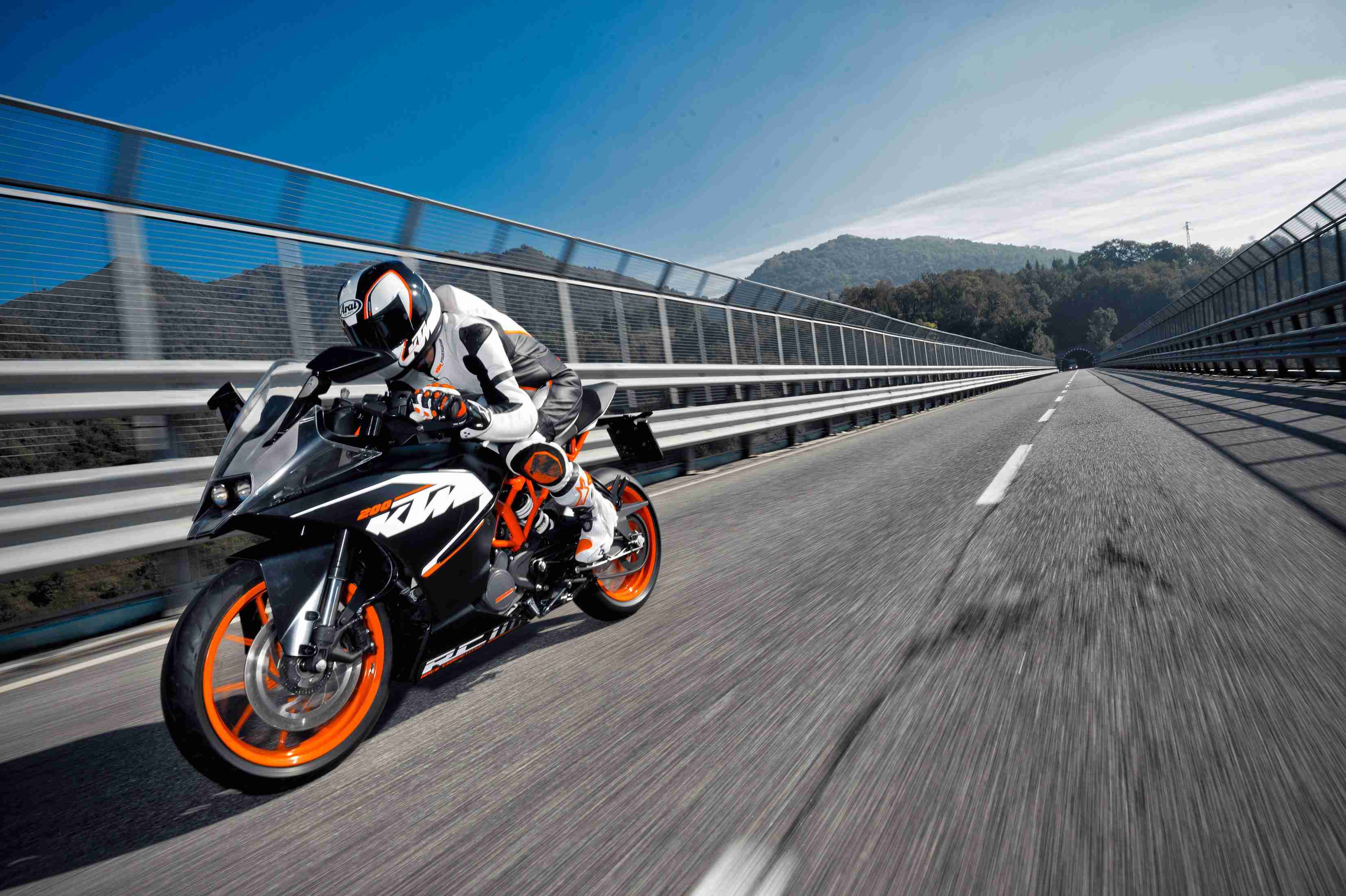

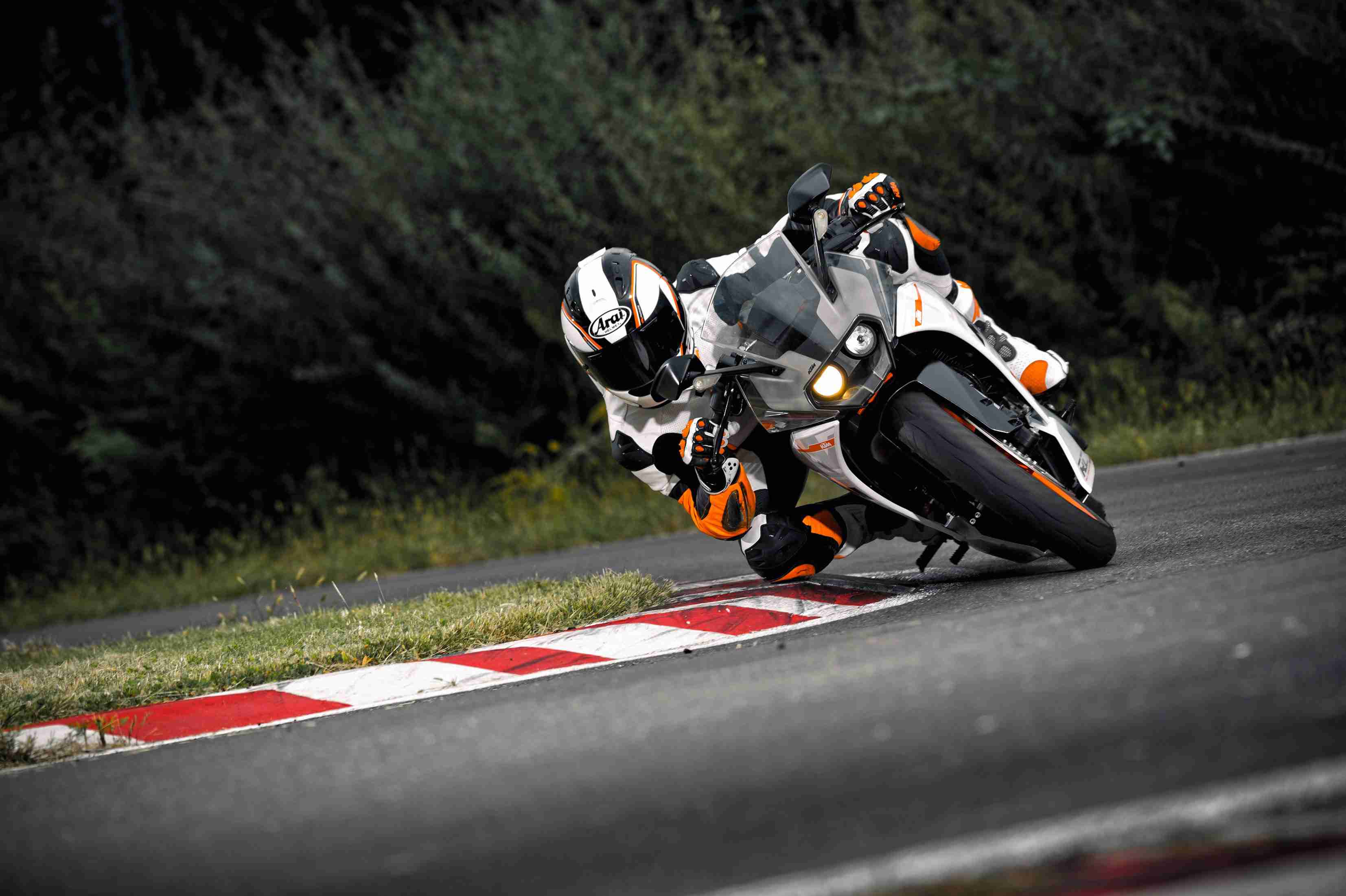

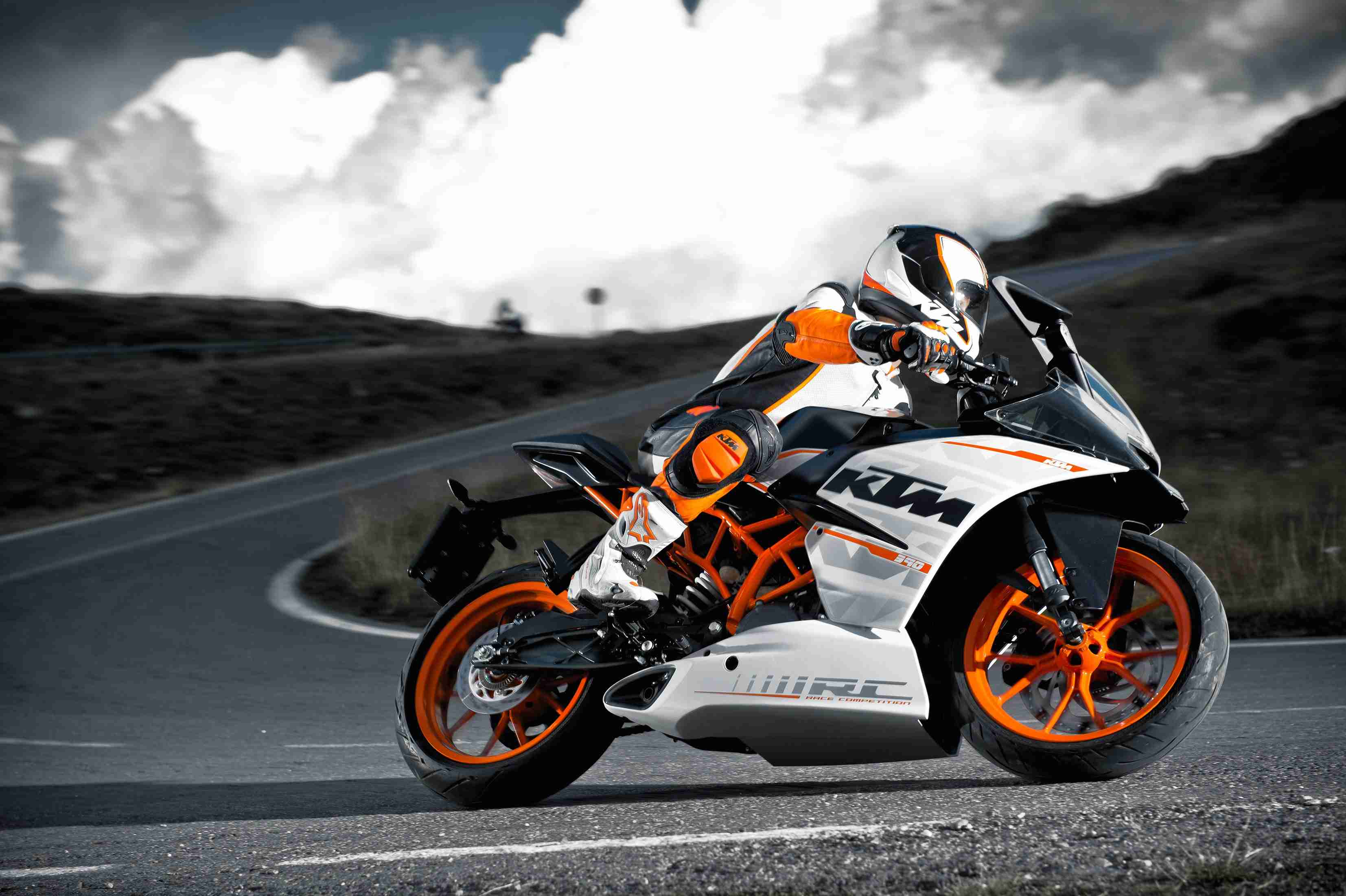

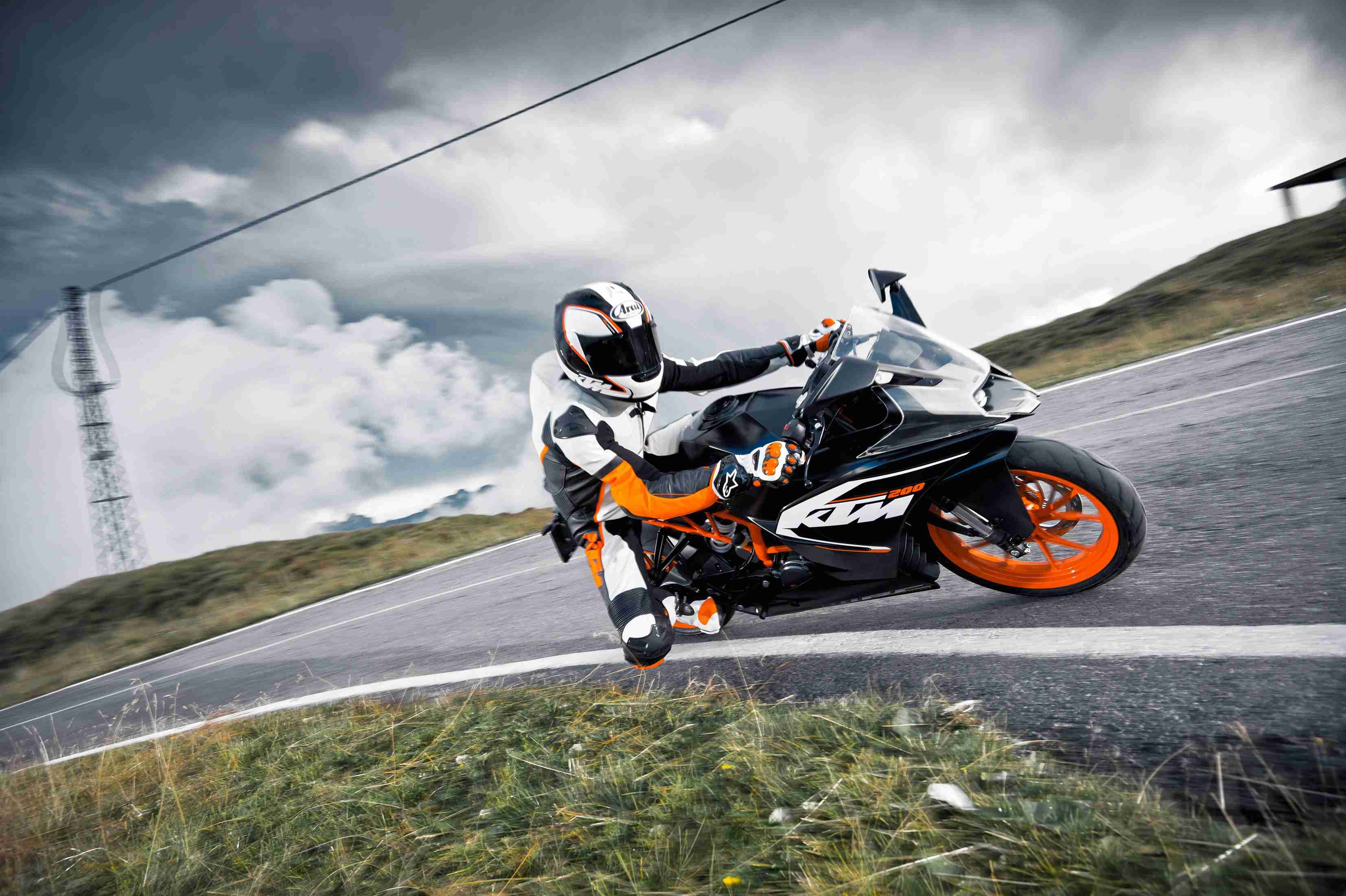

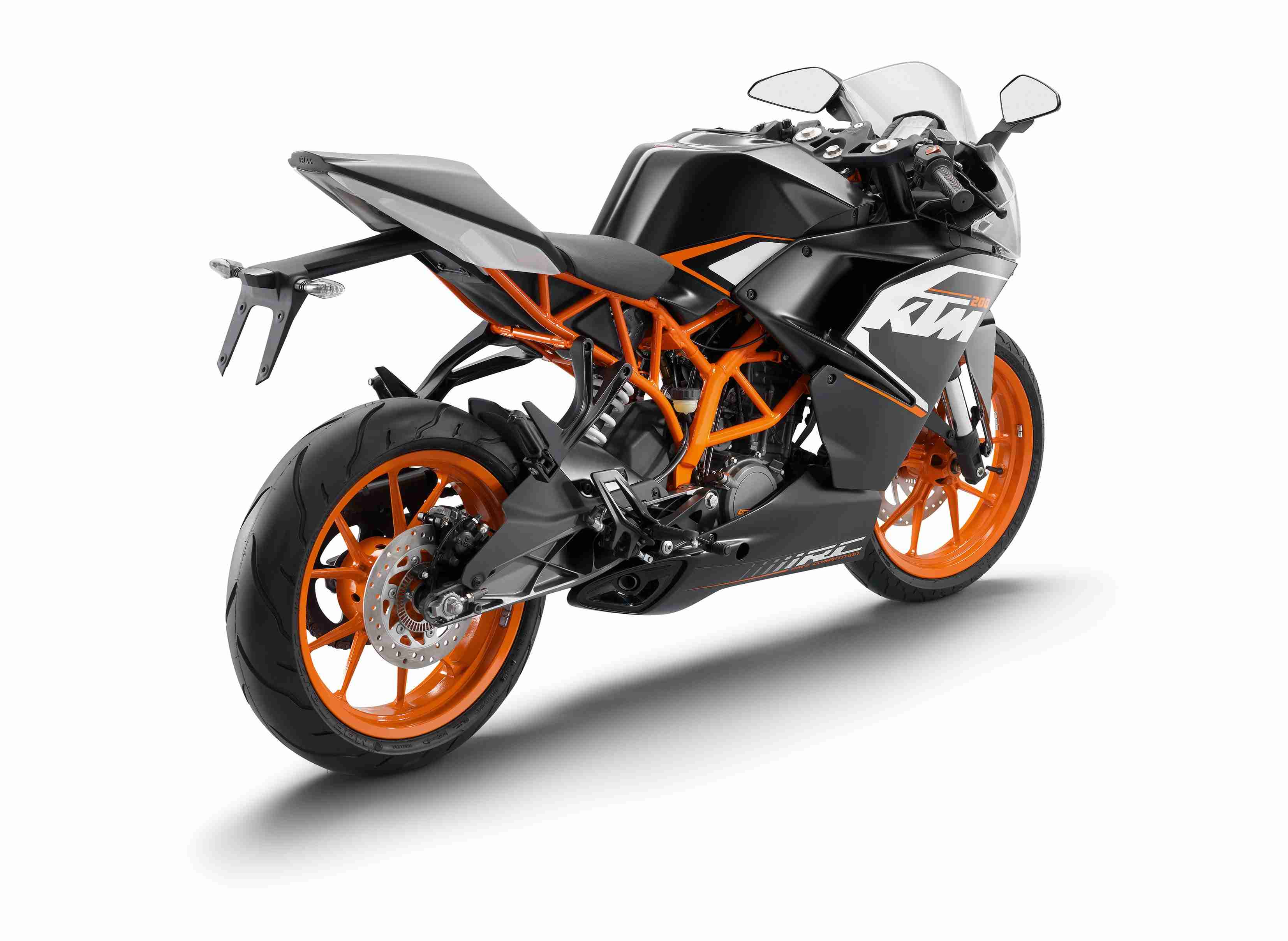

KTM has done it again, the RC390, RC200 and the RC125 will change the way people travel. Although the design might not be for all, it surely stands out in the crowd and since we already know how the engines on these bikes behave the RC’s series is going to be a blast to ride around. Expected price in India for the RC390 lies at around 2.4L and for the RC200 at about 2L. We expect the RC390/200 launch to be around August next year (2014). Check out detailed photographs and the specifications below.

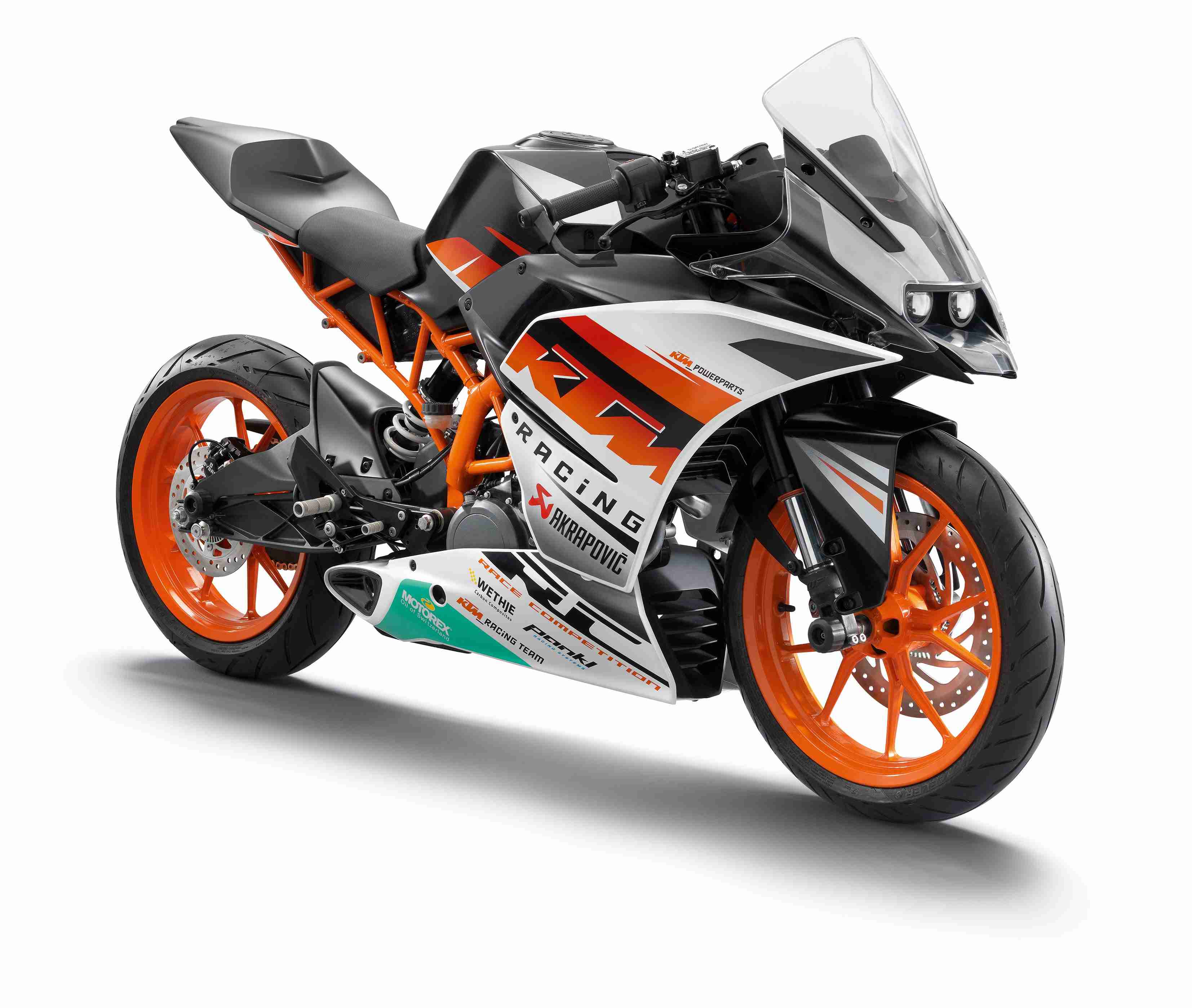

KTM RC390 technical specifications
- Engine: 1-cylinder 4-stroke engine, water-cooled
- Displacement: 373.2 cm³
- Bore: 89 mm
- Stroke: 60 mm
- Performance: 32 kW (43 hp)
- Starting aid: Electric starter
- Transmission: 6 speed, claw shifted
- Engine lubrication: Forced oil lubrication with 2 Eaton pumps
- Primary gear ratio: 30:80
- Secondary gear ratio: 15:45
- Cooling system: Liquid cooling system, continuous circulation with water pump
- Clutch: Wet multi-disc clutch / mechanically operated
- Ignition system: Contactless, controlled, fully electronic ignition with digital ignition timing adjustment
- Frame: Tubular space frame made from steel, powder-coated
- Fork: WP Suspension Up Side Down
- Shock absorber: WP Monoshock
- Suspension travel front: 125 mm
- Suspension travel rear: 150 mm
- Brake system Front: Disc brake with four-pot brake caliper
- Brake system Rear: Disc brake with one-pot brake caliper, floating brake discs
- Brake discs – diameter Front: 300 mm
- Brake discs – diameter Rear: 230 mm
- Chain: 5/8 x 1/4” X‑Ring
- Steering head angle: 66.5°
- Wheel base: 1,340±15 mm
- Ground clearance (unloaded): 178.5 mm
- Seat height (unloaded): 820 mm
- Total fuel tank capacity approx.: 10 l
- Unleaded premium fuel (95 RON)
- Weight without fuel approx.: 147 kg

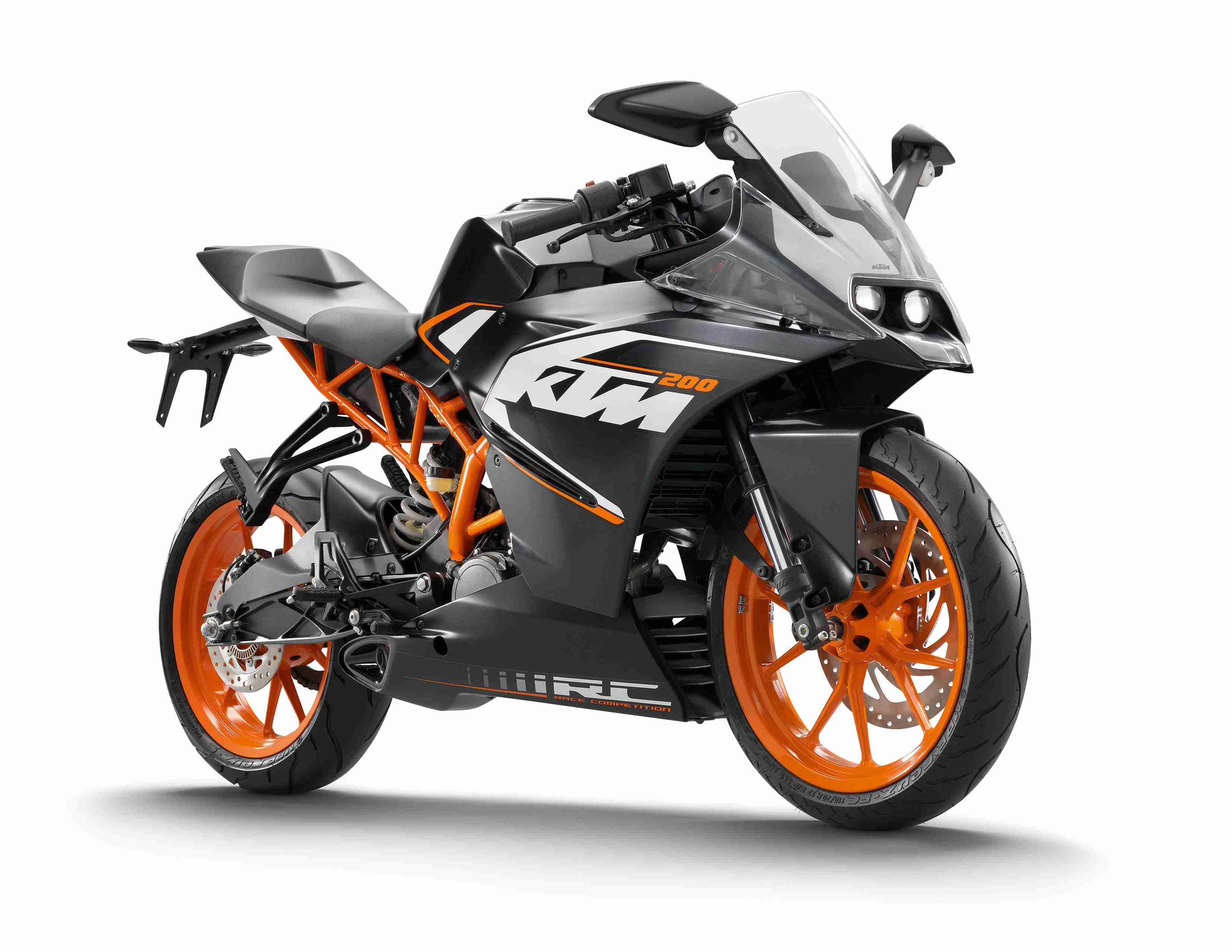

KTM RC200 technical specifications
- Engine: Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled
- Displacement: 199.5 cm³
- Bore: 72 mm
- Stroke: 49 mm
- Performance: 19 kW (25 hp)
- Starting aid: Electric starter
- Transmission: 6-speed, claw shifted
- Engine lubrication: Forced oil lubrication with 1 rotor pump
- Primary gear ratio: 22:72
- Secondary gear ratio: 14:42
- Cooling system: Liquid cooling system, continuous circulation with water pump
- Clutch: Clutch in oil bath / mechanically operated
- Ignition system: Contactless, controlled, fully electronic ignition with digital ignition timing adjustment
- Frame: Tubular space frame made from steel tubes, powder-coated
- Fork: WP Suspension 4357
- Shock absorber: WP Suspension 4618 EM
- Suspension travel front: 125 mm
- Suspension travel rear: 150 mm
- Brake system Front: Disc brake with four-pot brake caliper
- Brake system Rear: Disc brake with one-pot brake caliper, floating brake discs
- Brake discs – diameter front: 300 mm
- Brake discs – diameter rear: 230 mm
- Chain: 5/8 x 1/4” X‑Ring
- Steering head angle: 66.5°
- Wheel base: 1,340±15 mm
- Ground clearance (unloaded): 178.5 mm
- Seat height (unloaded): 820 mm
- Total fuel tank capacity approx.: 10 l
- Unleaded premium fuel (95 RON)
- Weight without fuel approx.: 137.5 kg
