2014 KTM RC390 in race trim unveiled

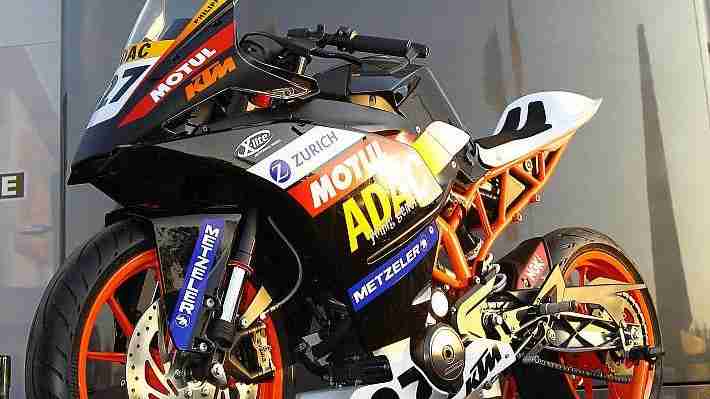

2014 KTM RC390

Along with the introduction of the ADAC Junior Cup came the introduction of the bike that will be used in the series and this turns out to be the KTM RC390 in its race prepped avatar. Now we have all been waiting for some ‘visual’ confirmation of this much awaited faired 390 ever since we had a verbal confirmation from the KTM CEO himself. The race version is almost similar to the actual road version sans the headlights, underbelly exhaust and a more complete fairing. The final road version will début at the EICMA this year and would see a launch in India by January. We must say it does look sharp. Expect vertically stacked projectors, a LED tail light and a covered tail section.

The engine on the 390 is something that has put competitors to shame and compare that to the expected weight of the about 150kgs the RC390 will surely be a  stylish bike that takes all benchmarks already set and lifts it to an all new high. Check out the specifications of the race version below.

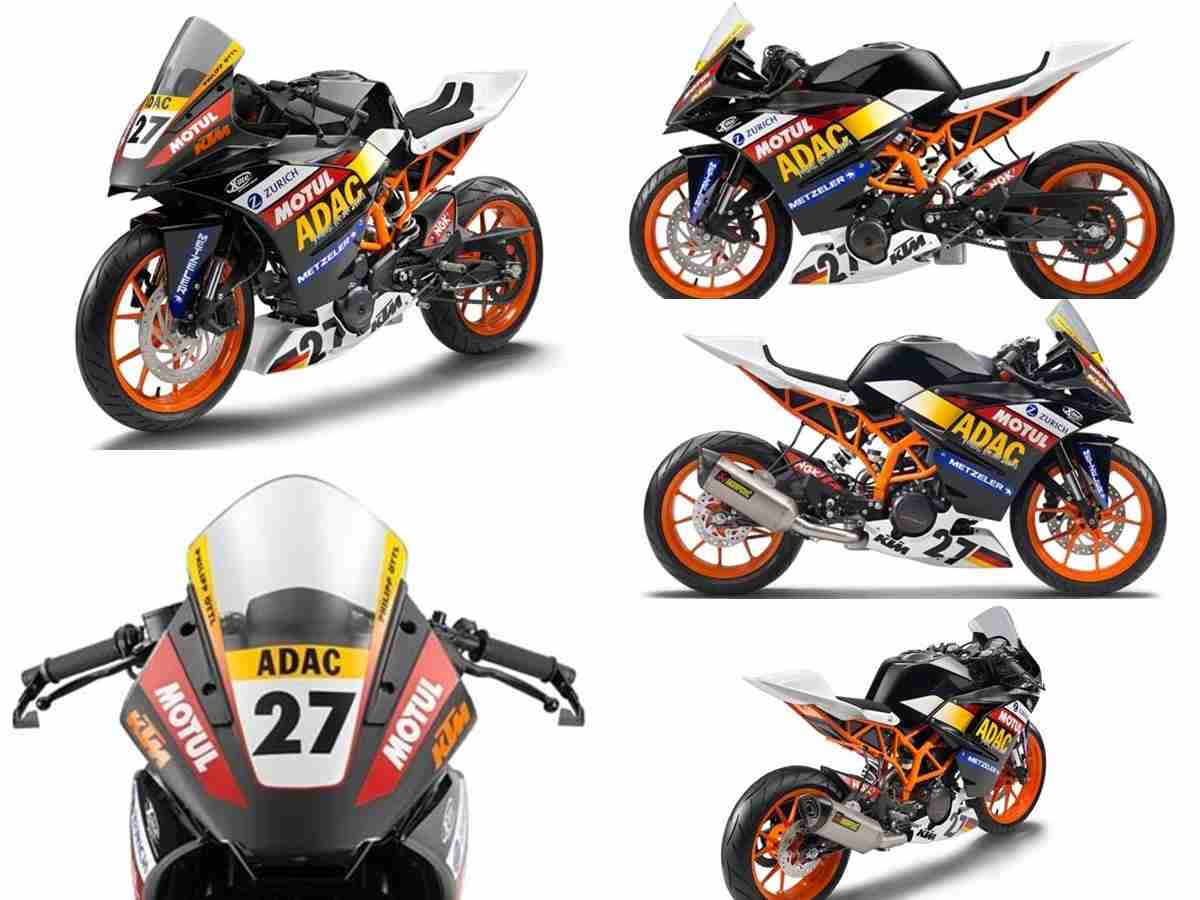

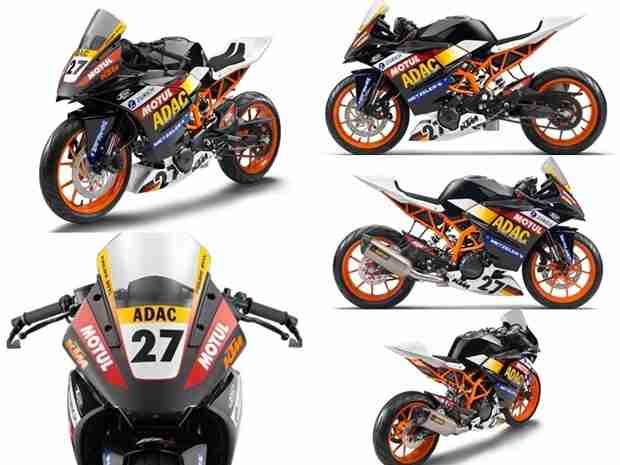

ktm rc390 race version

Stefan Pierer – KTM CEO on the KTM RC390

“We developed a pure GP racing machine for the Moto3 World Championship. In contrast, the RC 390 Cup is based on a series model project. Both of these two projects were given the highest priority because the development of lower displacement, high quality street bikes are among our core activities. The new KTM RC 390, which will be available for sale in 2014 will meet a big demand for affordable, quality sport bikes for the lower displacement class.”

“Since 1993, ADAC has achieved a great deal with excellent work with up-and-coming riders in the Junior Cup. The promotion and support of young talent is also a very important aspect for KTM. We are happy to put a lot of energy into this because we actively engage in the promotion of young riders both in off-road sports and on asphalt. We are honestly thrilled that we will be able to support the ADAC Junior Cup as the KTM 390 Cup with all KTM bikes. Also because with ADAC we have a committed, reliable and strong partner in which everyone involved is a professional.”

2014 KTM RC390 Cup Race Bike Technical Specifications:

  • Engine type: single-cylinder, four-stroke, 4 V / DOHC
  • Displacement: 373.2 cc
  • Power: 38 PS (37.48 hp)
  • Fuel System: Bosch EFI (throttle valve 46 mm)
  • Engine Lubrication: Wet sump system
  • Cooling system: Liquid
  • Clutch: Mechanical multi-disc clutch in oil bath
  • Engine management: Bosch EMS
  • Frame: Steel tube frame, powder coated
  • Front suspension: WP-USD 43 mm
  • Rear suspension: WP-Monoshock
  • Brake system front: Four-piston brake calliper, radially symmetric sealed-off rim brake, brake disc – 300 mm
  • Rear brake: Single-piston brake calliper, floating calliper brake, brake disc  230 mm
  • Wheels front / rear: Cast aluminium wheels 3.00 x 17 “, 4.00 x 17″
  • Front / rear tires: 110/70 ZR 17, 150/60 ZR 17
  • Silencers: Akrapovic titanium silencer with regulated catalytic converter
  • Steering head angle: 66.5 °
  • Wheelbase: 1340 + / -15 mm
  • Seat Height: 850 mm (33.5 inches)
  • Fuel tank capacity: 9.5 litres (2.51 gallons)
  • Weight: 130 kg (286.6 lbs.)
