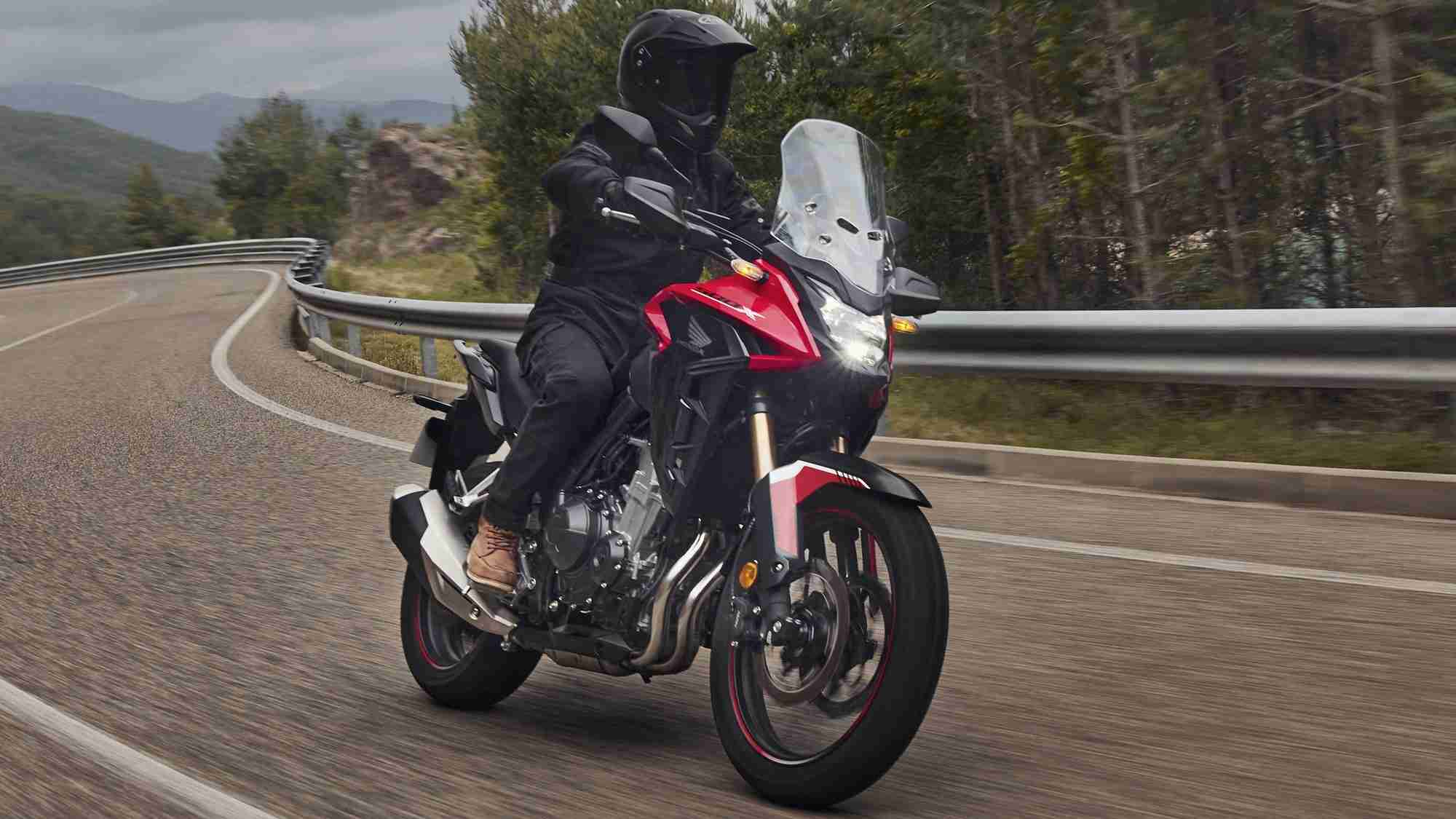

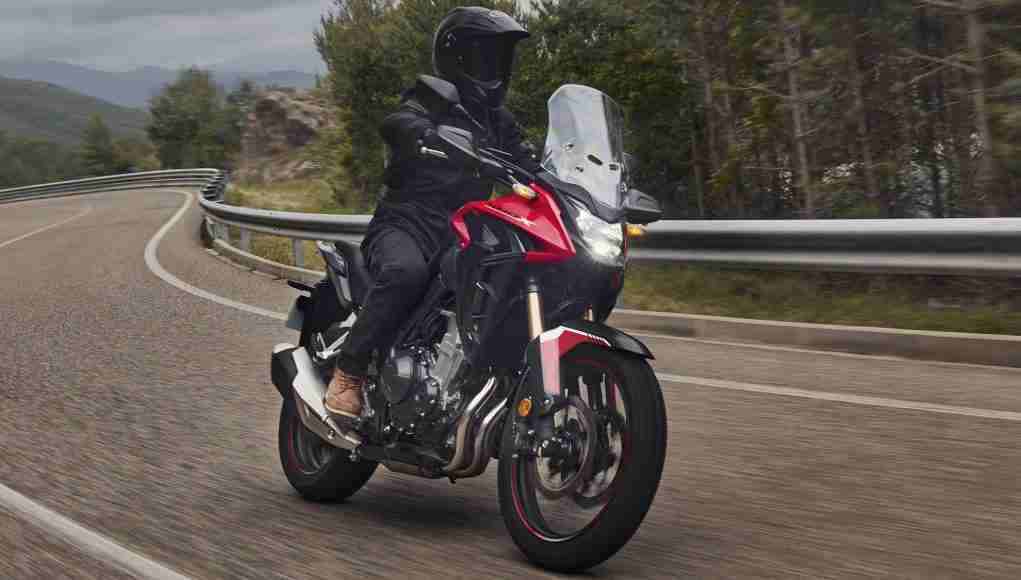

Honda’s 2022 CB500X receives improvements led by Showa 41mm Separate Function Fork Big Piston (SFF-BP) USD forks, dual disc front brakes and radial-mount calipers. Handling is further improved by the new swingarm, which is lighter with more lateral flex. The rear shock has new settings to complement the new forks. A redesigned front wheel and lighter radiator save weight and new fuel injection settings improve engine character. More powerful headlight LEDs and front indicator position lights offer greater visibility.
With the aim to heighten all-round handling performance the 41mm telescopic forks of the previous design have been replaced by spring preload-adjustable Showa 41mm Separate Function Fork Big Piston (SFF-BP) USD forks with 135mm axle travel (150mm cushion stroke), clamped by new top and bottom yokes. By dividing the functions – Big Piston pressure separation damper in one leg, spring mechanism in the other – reaction and ride quality are both improved.
Handling is further improved by the redesigned, lighter swingarm. Now constructed from 2mm steel (rather than 2.3mm), it employs a hollow cross member and is stiffer rotationally, and also more flexible laterally to improve handling. A crisply redesigned chain guard completes the new look.
In line with the dynamic improvements to the chassis and suspension, the braking performance has also been improved. The single 310mm wave-pattern disc and two-piston caliper front brake of the previous design has been replaced by dual 296mm wave-pattern discs and axial mounted Nissin two-piston calipers. The introduction of the smaller discs not only keeps any additional weight gain to a minimum, but also reduces the required pressure on the lever when braking.
The redesigned 19-inch cast aluminium front wheel – lighter thanks to thinner spokes – reduces unsprung weight to aid turning ability. It’s crowned by a tough new mudguard design and heads a 17-inch rear wheel; trail-pattern tyres are sized 110/80-R19 front and 160/60-R17 rear. Weight bias has also been adjusted. with front/rear bias percentage of 48.7/51.3 compared to the previous 48/52. Kerb weight is 199kg. Wheelbase remains 1,445mm with rake and trail of 27.5°/108mm.
There are two available height settings – 1445 mm and 1410 mm for the front windshield is managed to improve wind protection for the rider at highway speeds. The sharply-chiselled headlight is now even more piercing with extra-powerful LEDs, plus there’s added visibility from front indicator position lights.
2022 Honda CB500X key specifications
- Gets Showa 41 mm Seperate Function Big Piston USD forks
- Dual disc brakes with radial mounted callipers
- Lighter swingarm
- More powerful LED headlights
- Redesigned front wheel is lighter
- Radiator is also lighter
- 471 mm parallel twin liquid cooled
- 47.5 PS @ 8,600 rpm
- 43 Nm @ 6,500 rpm
- 17.5 l tank
- 6 speed
- 830 mm seat height
- 199 kg kerb weight
- 180 mm ground clearance
- 19 inch front / 110/80
- 17 inch rear / 160/60
- Dual channel ABS
- 296 mm dual disc at front
- 240 mm rear disc at rear
