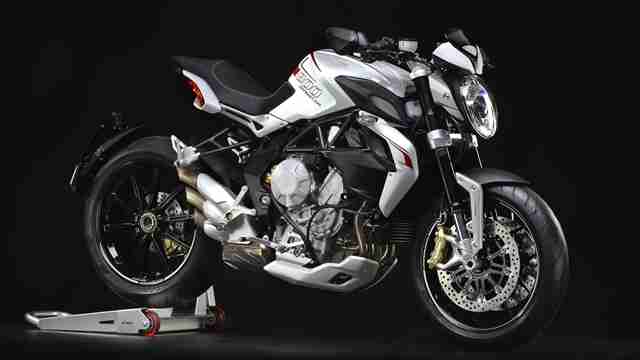

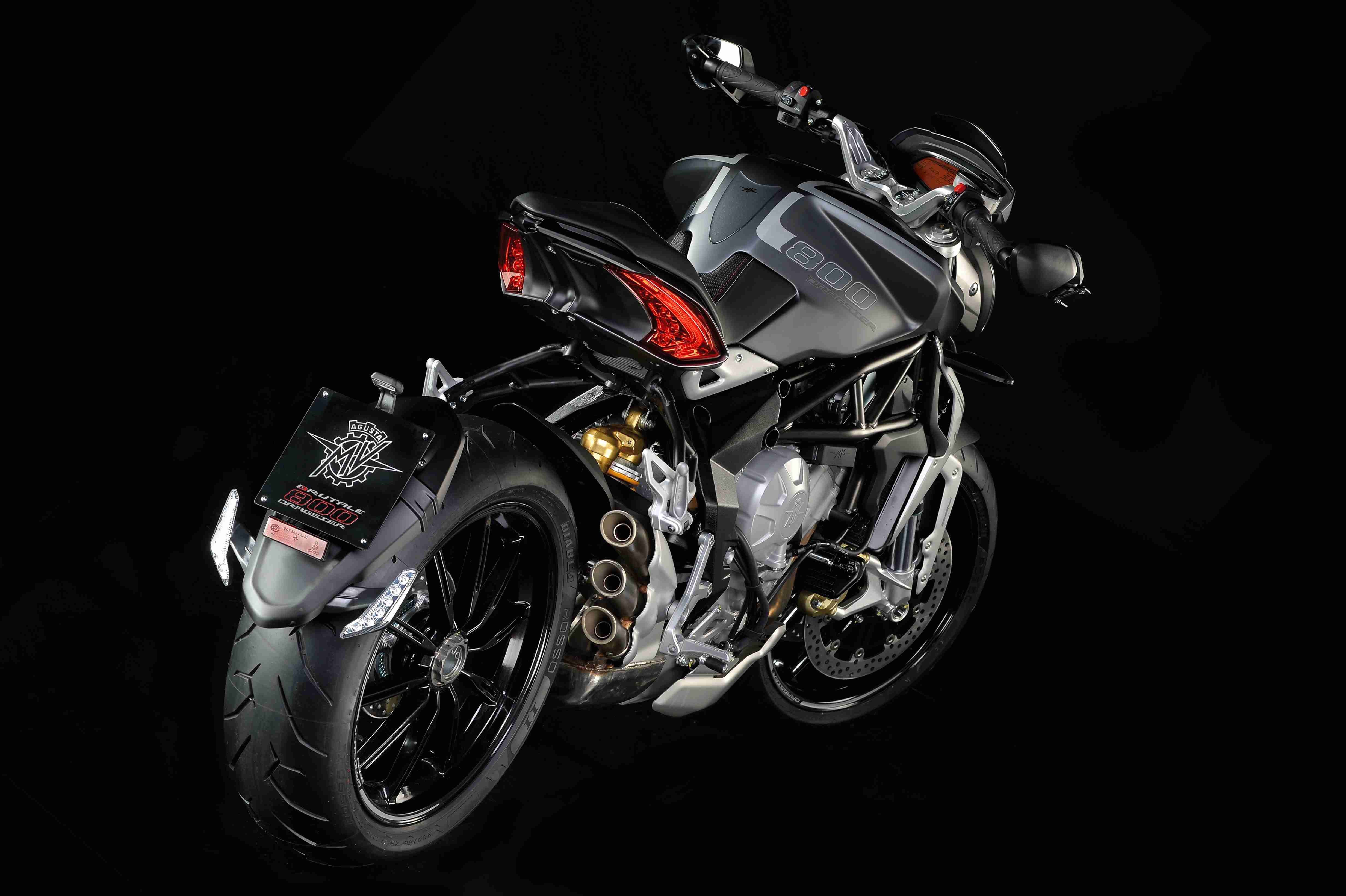

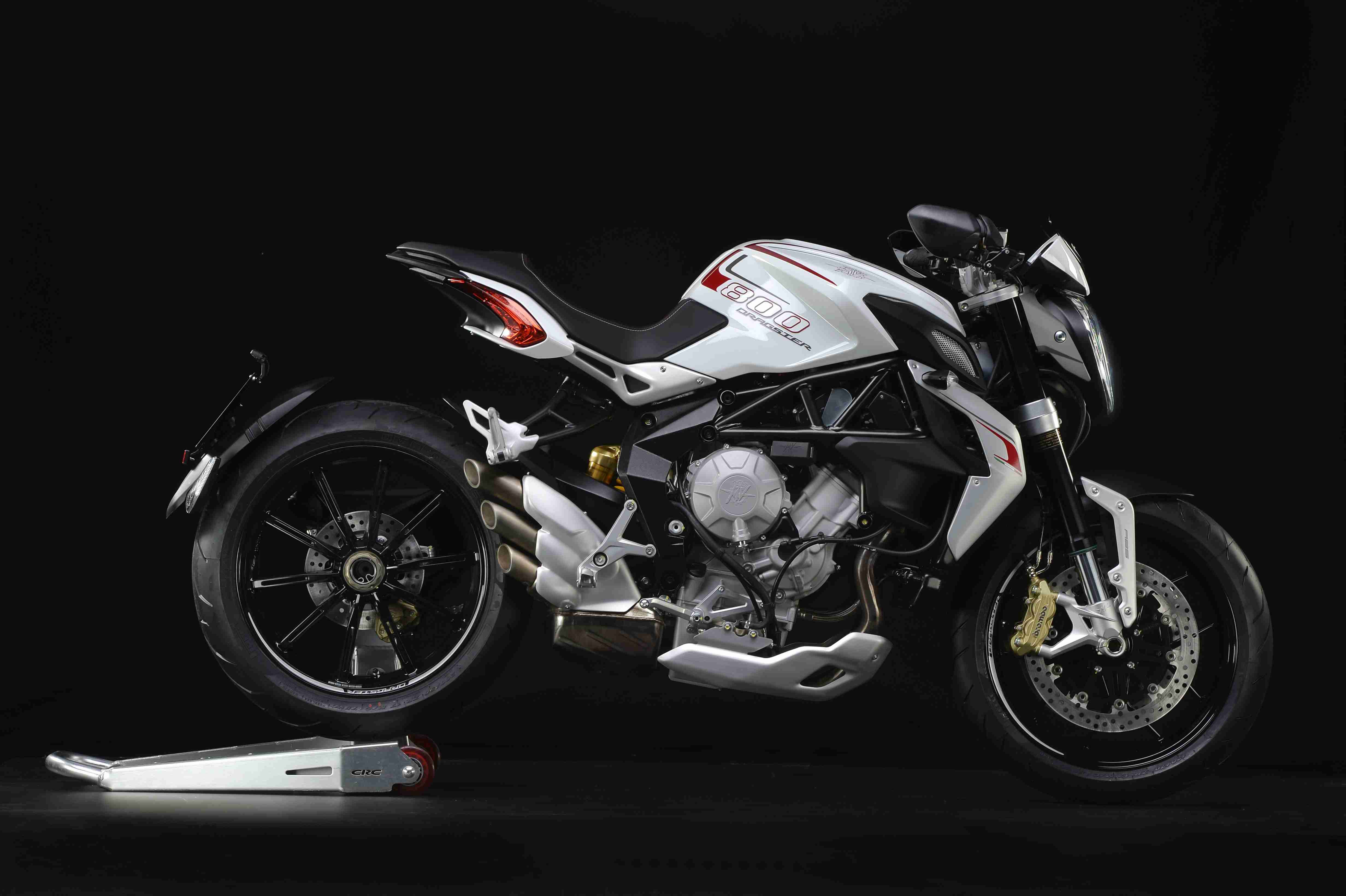

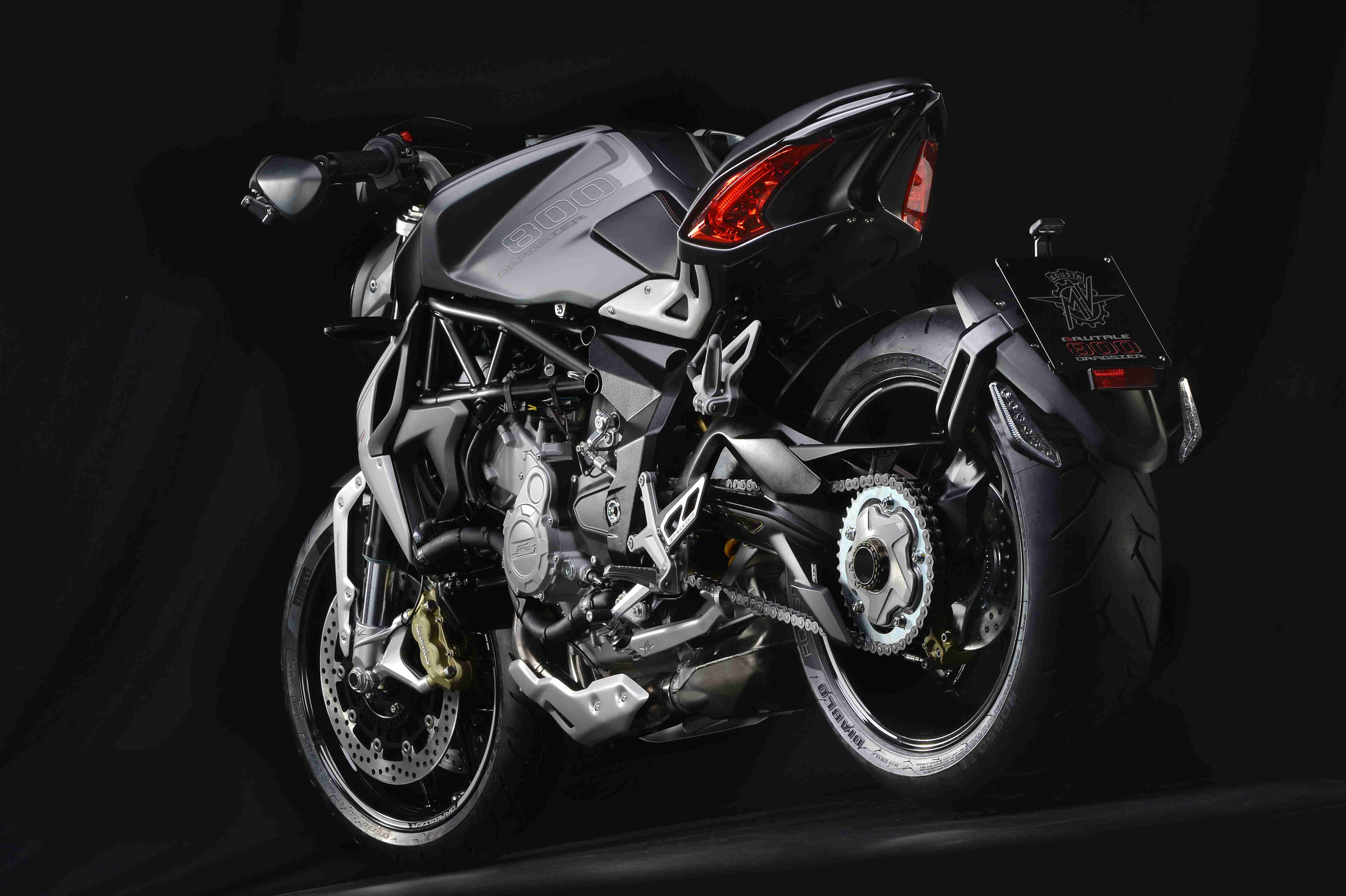

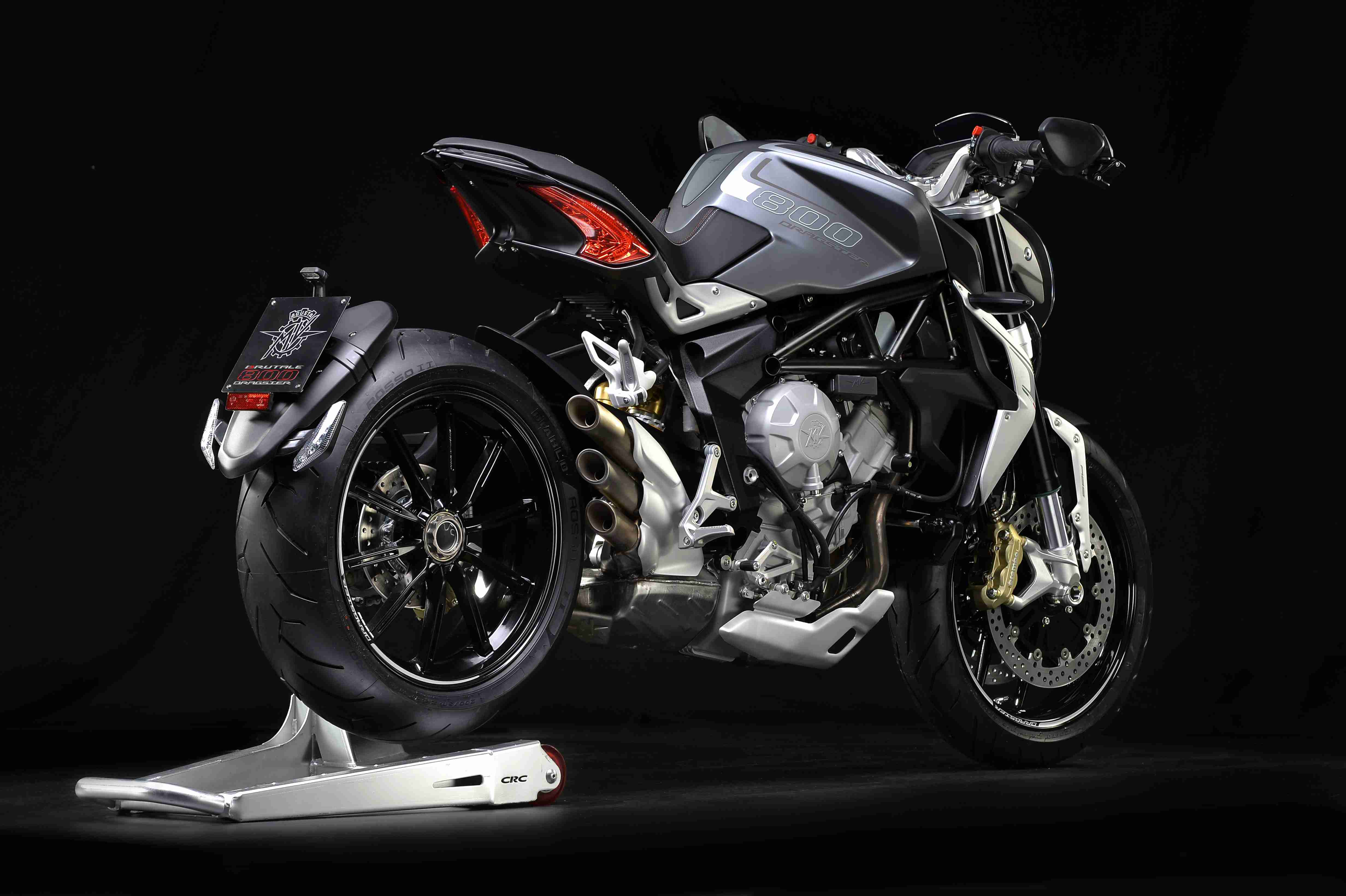

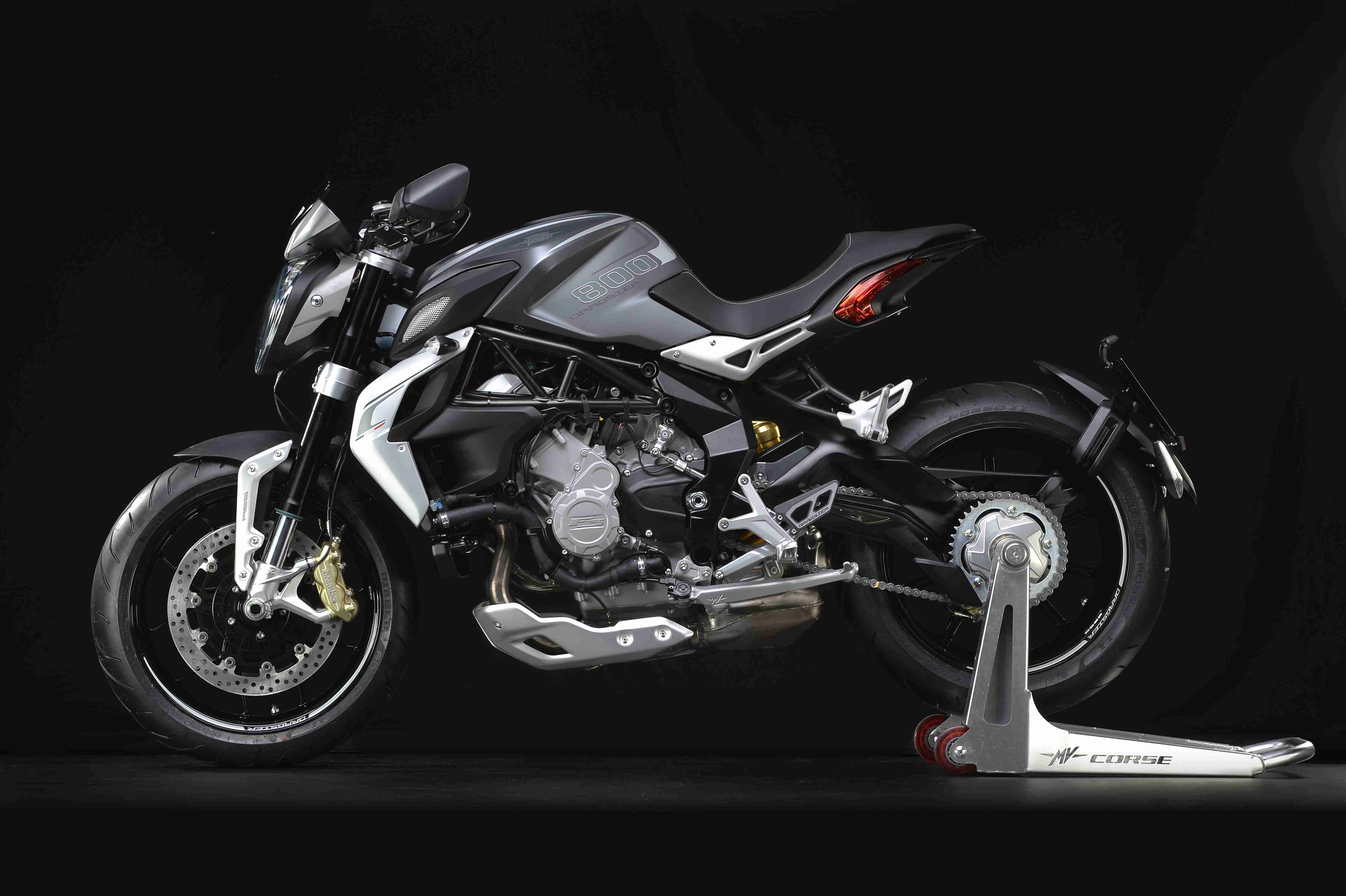

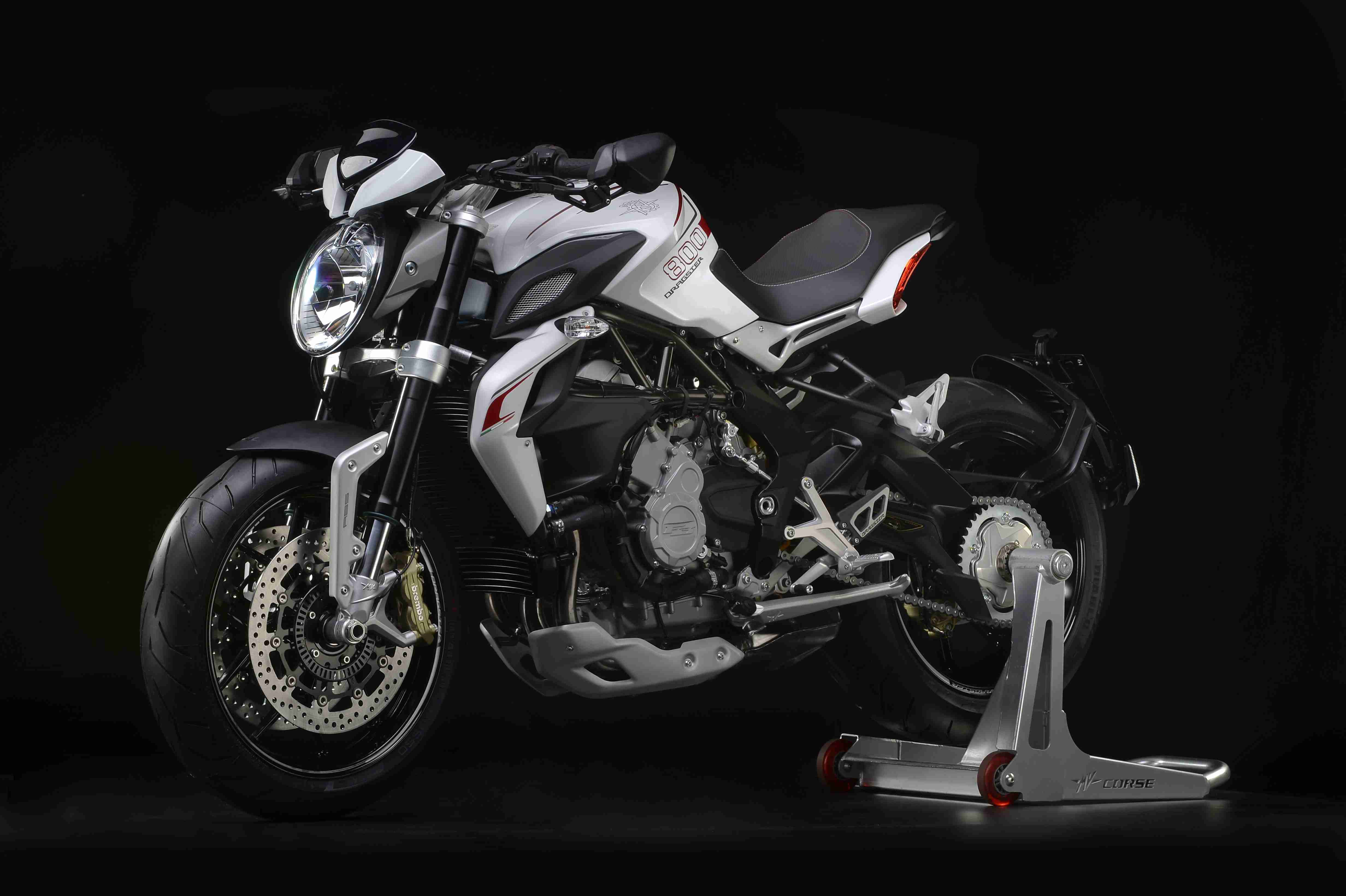

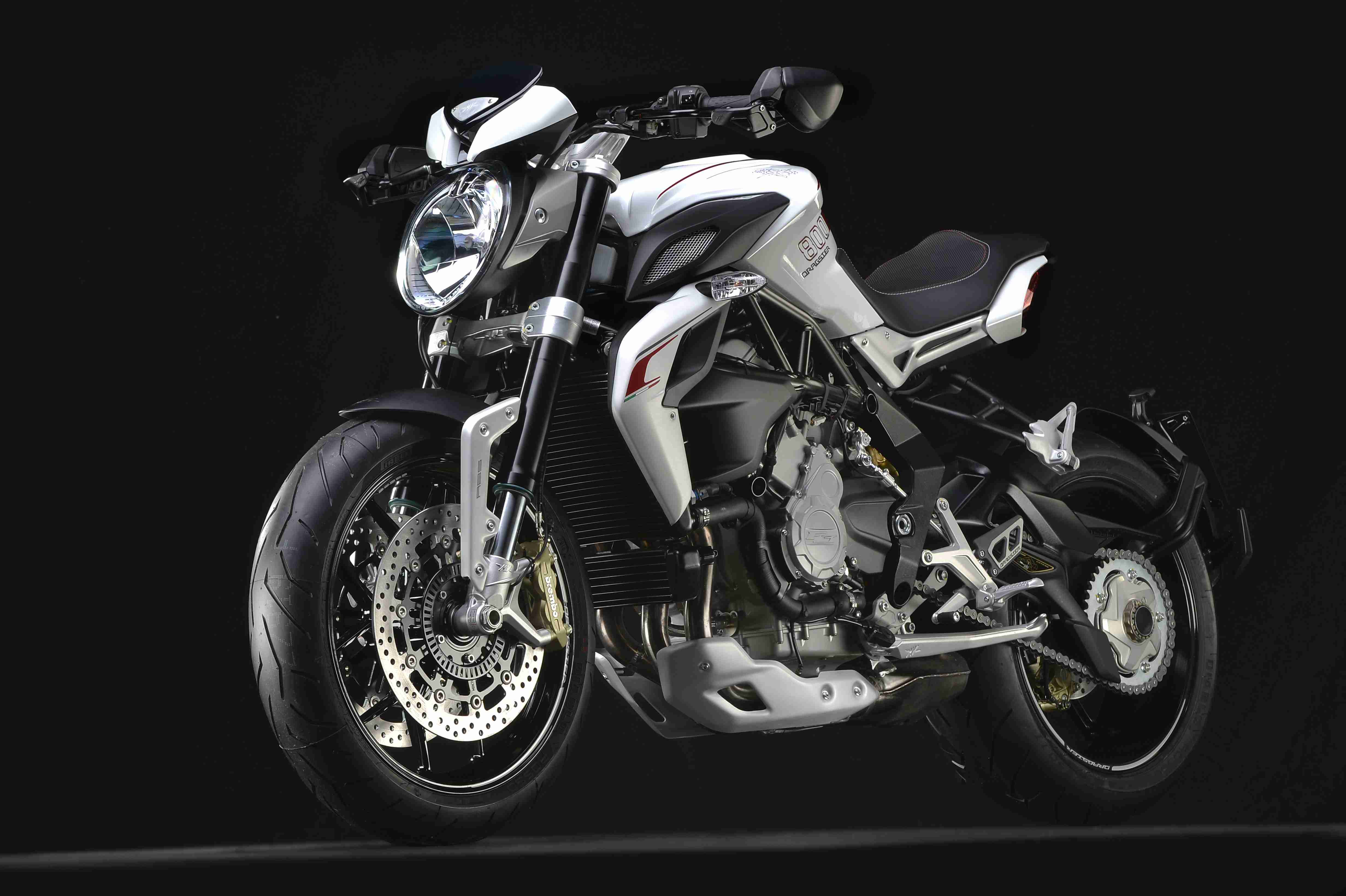

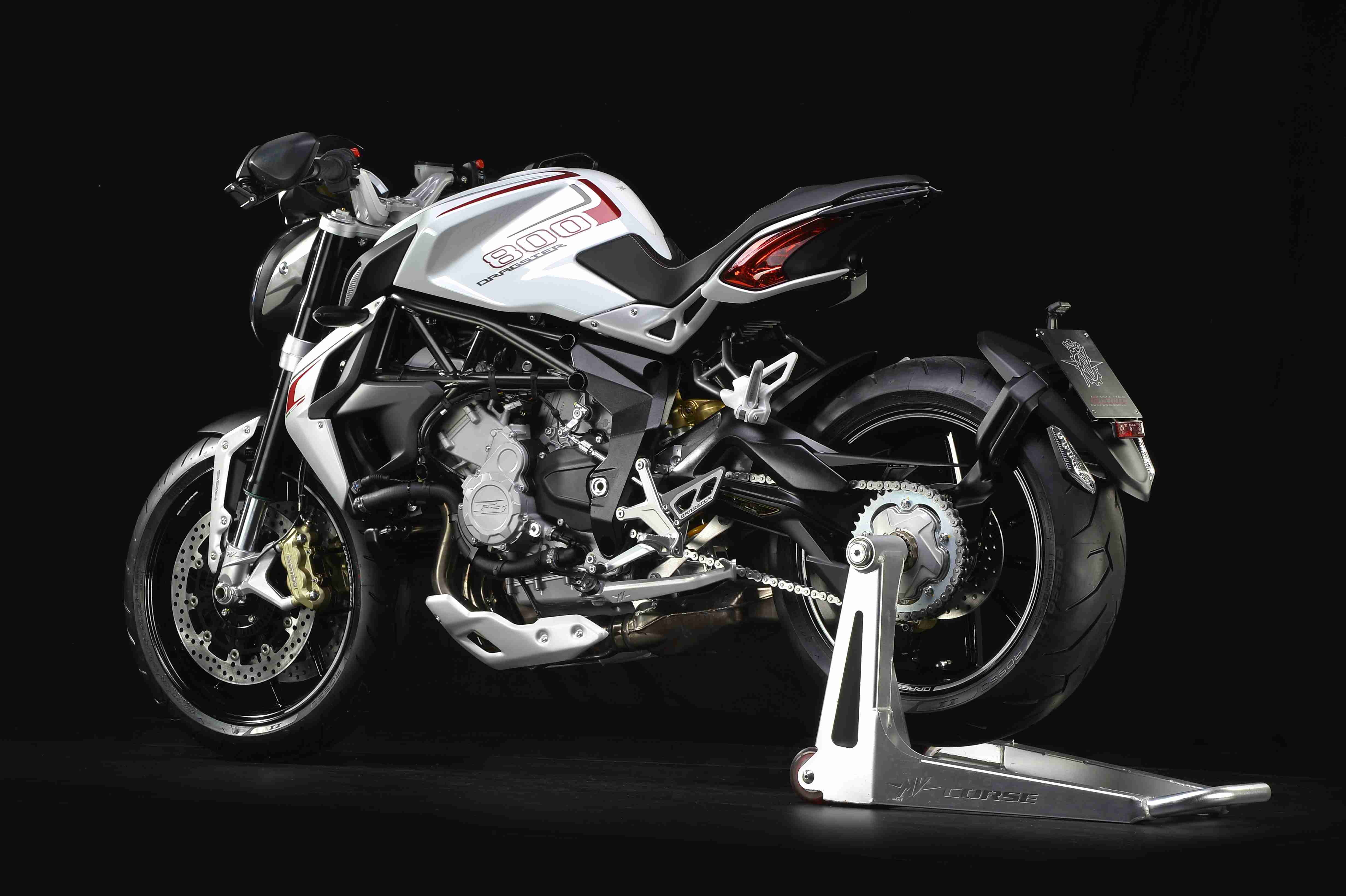

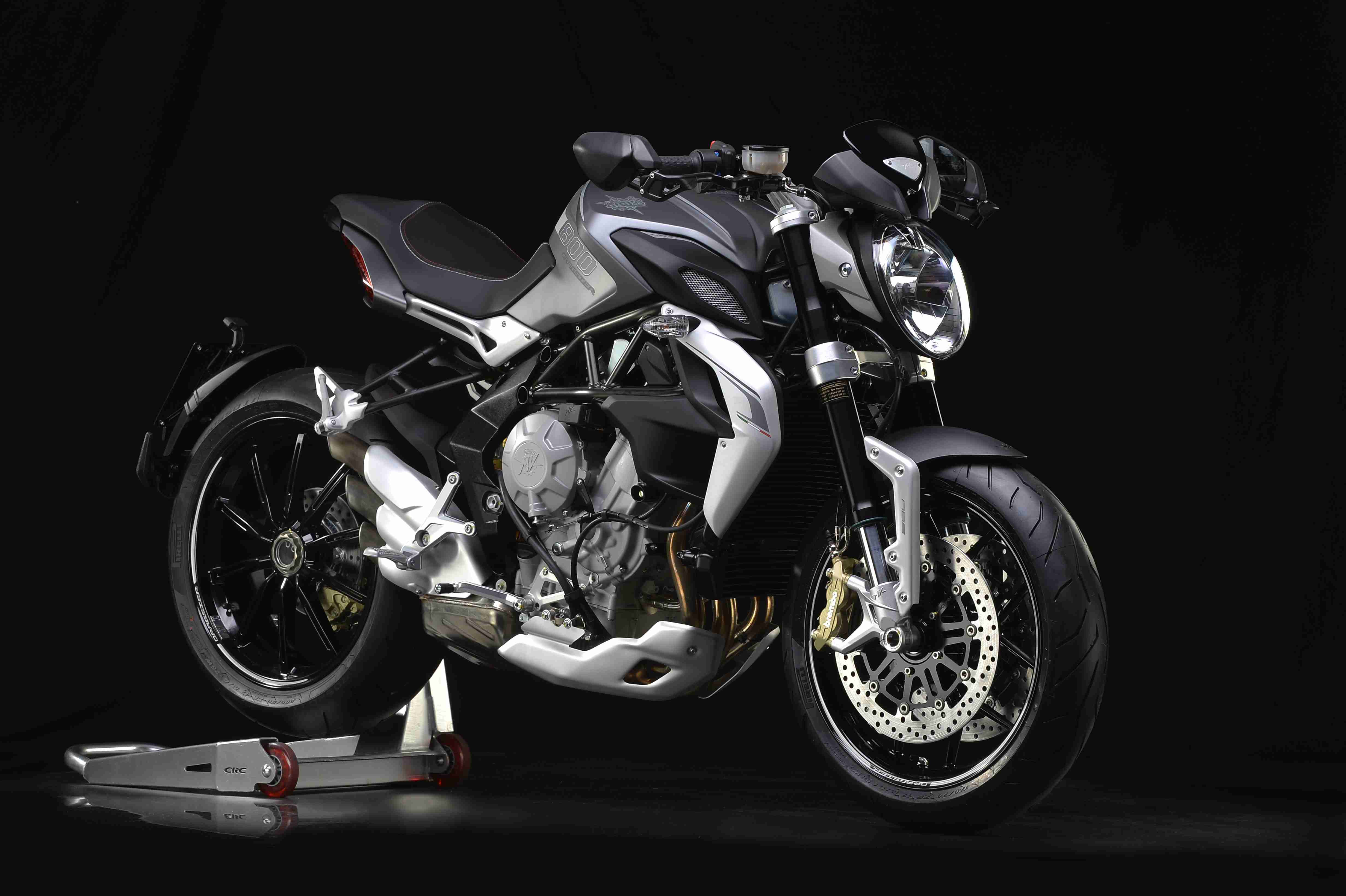

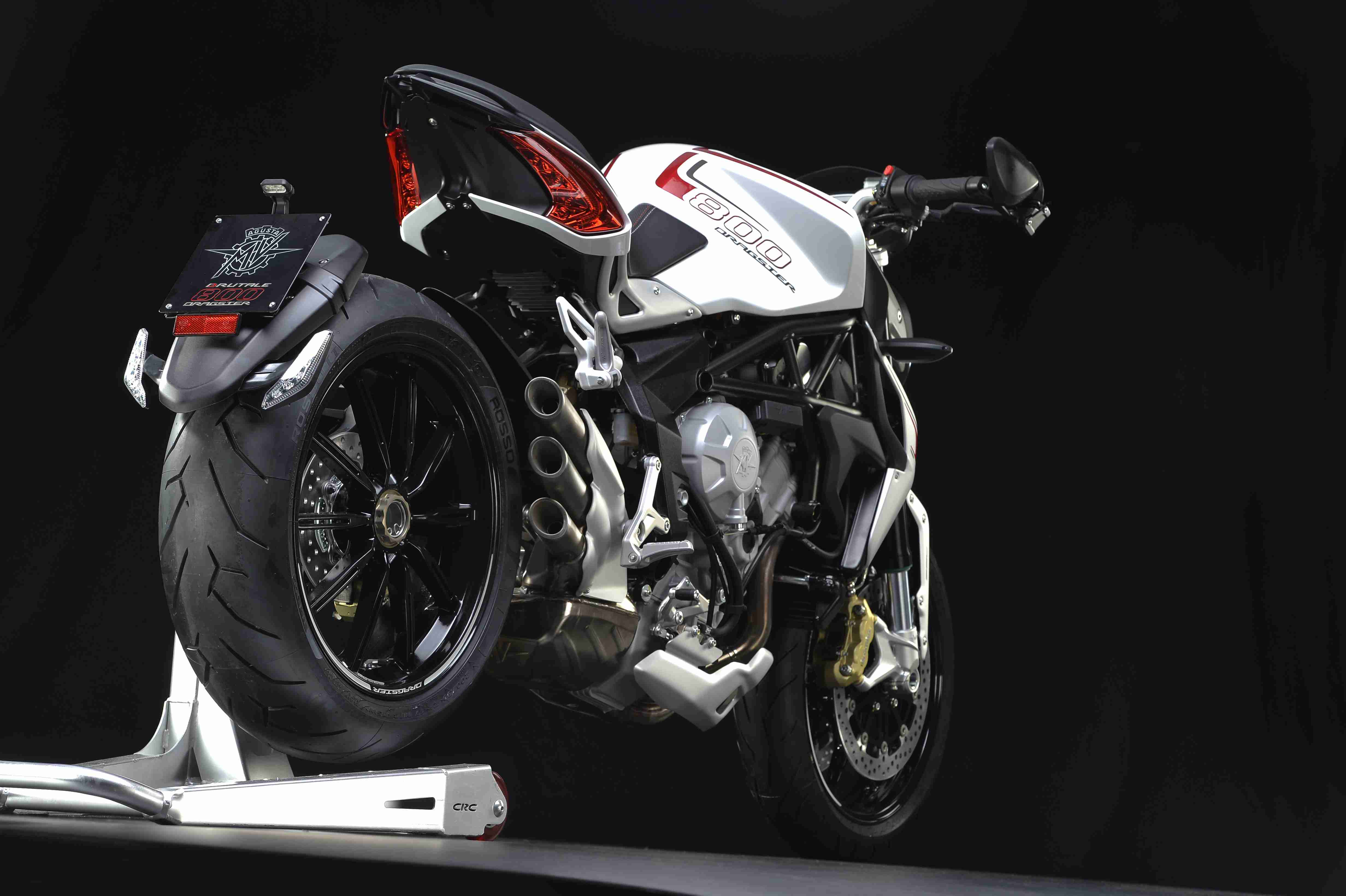

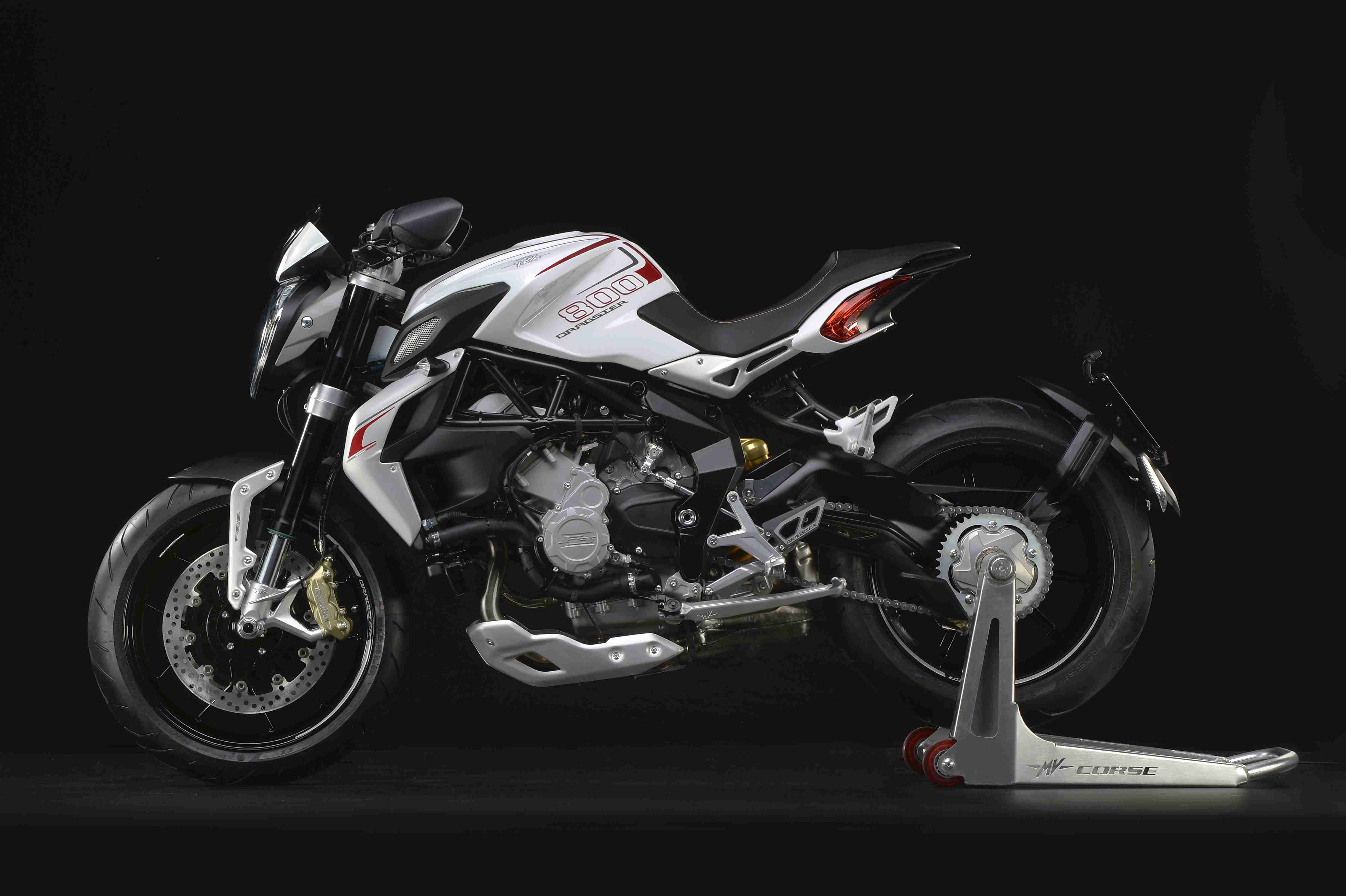

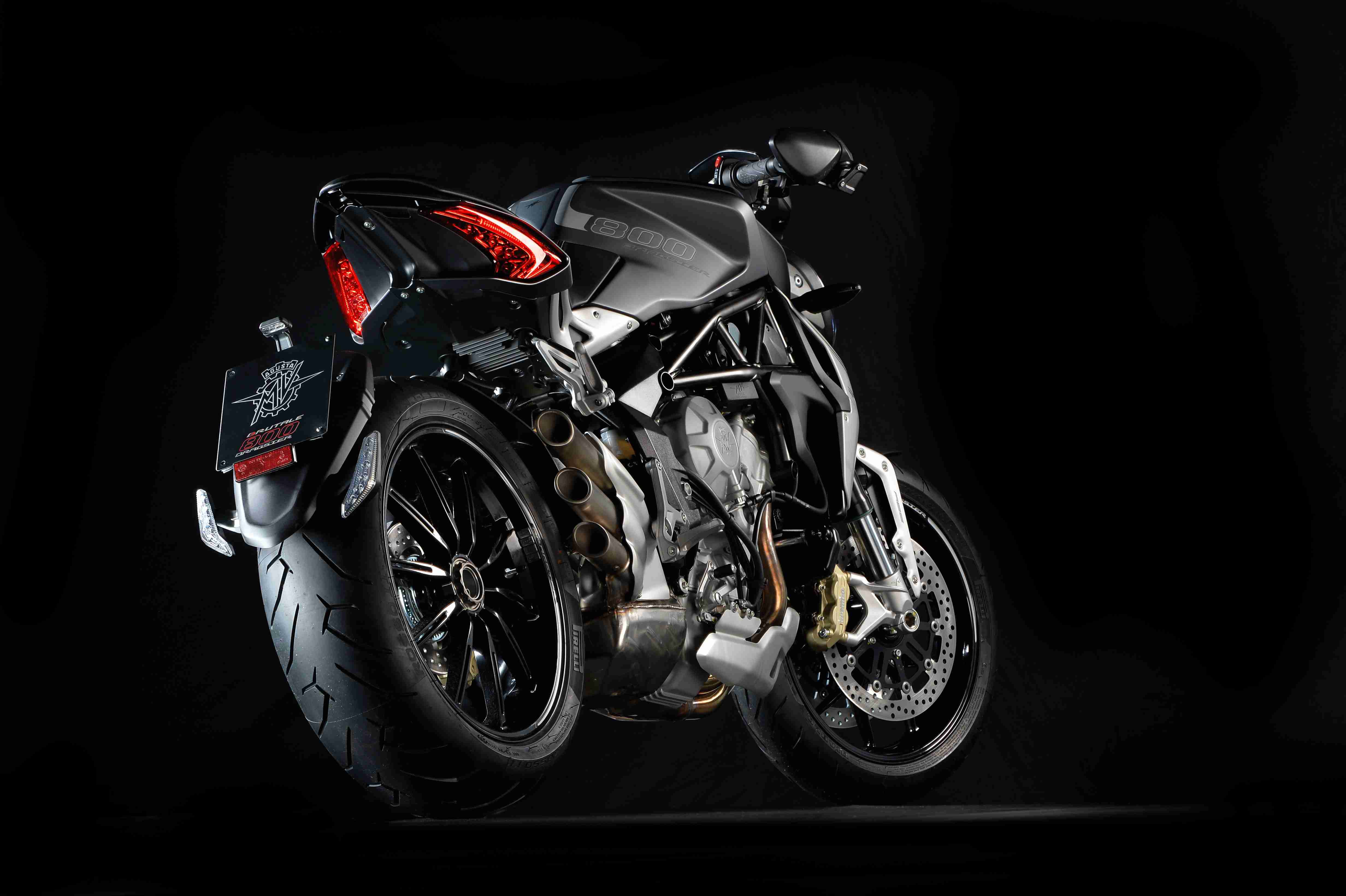

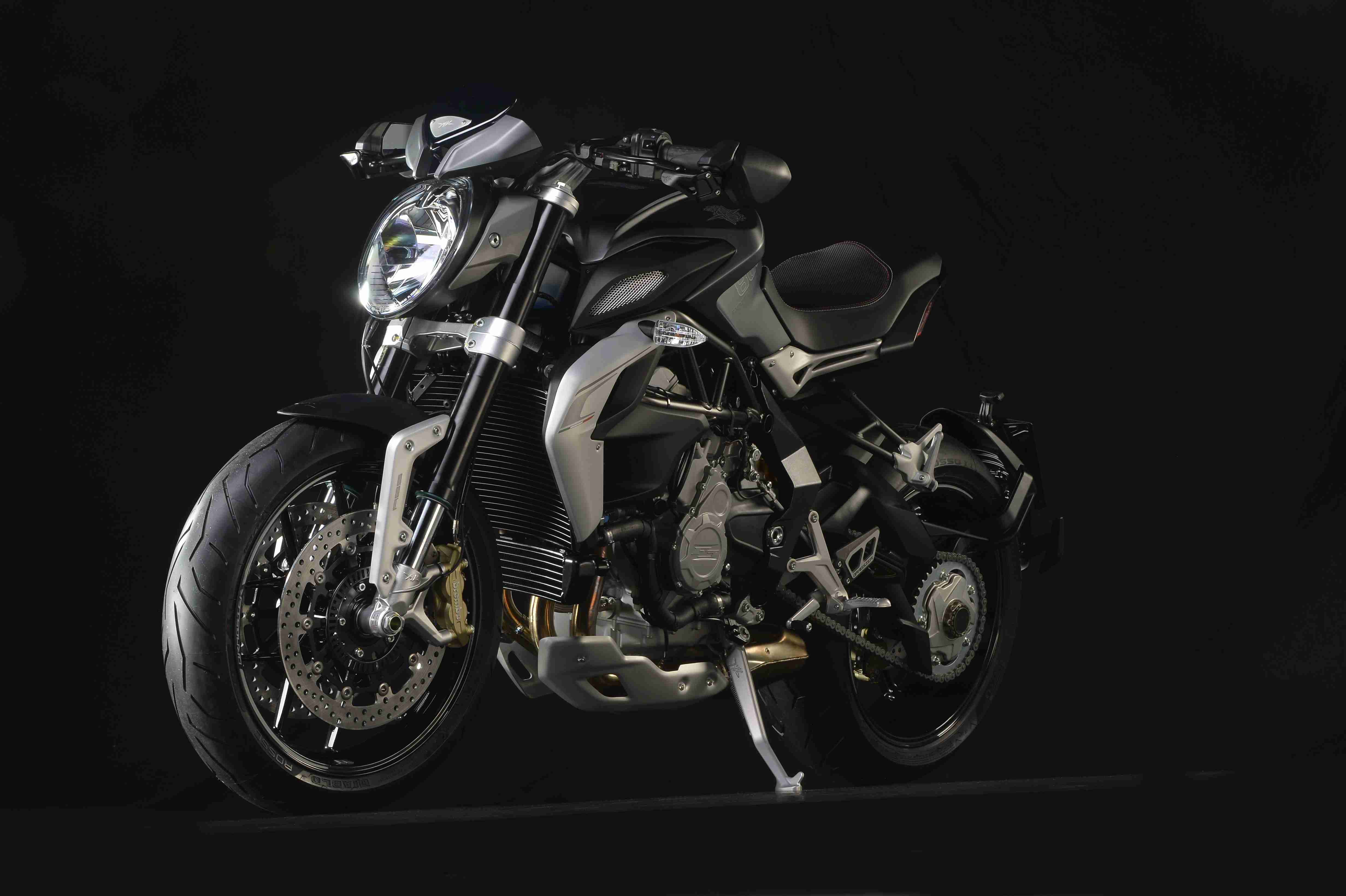

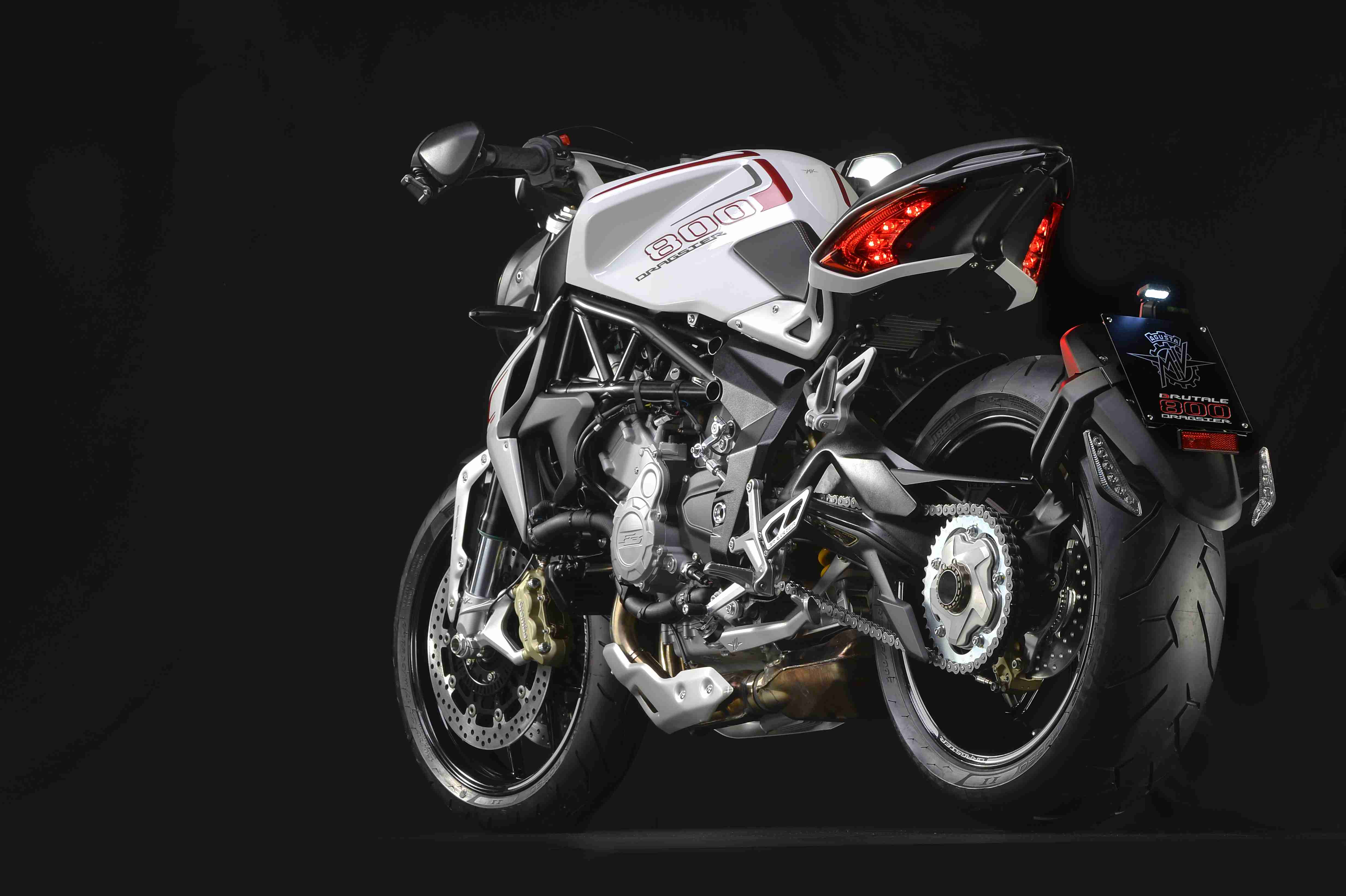

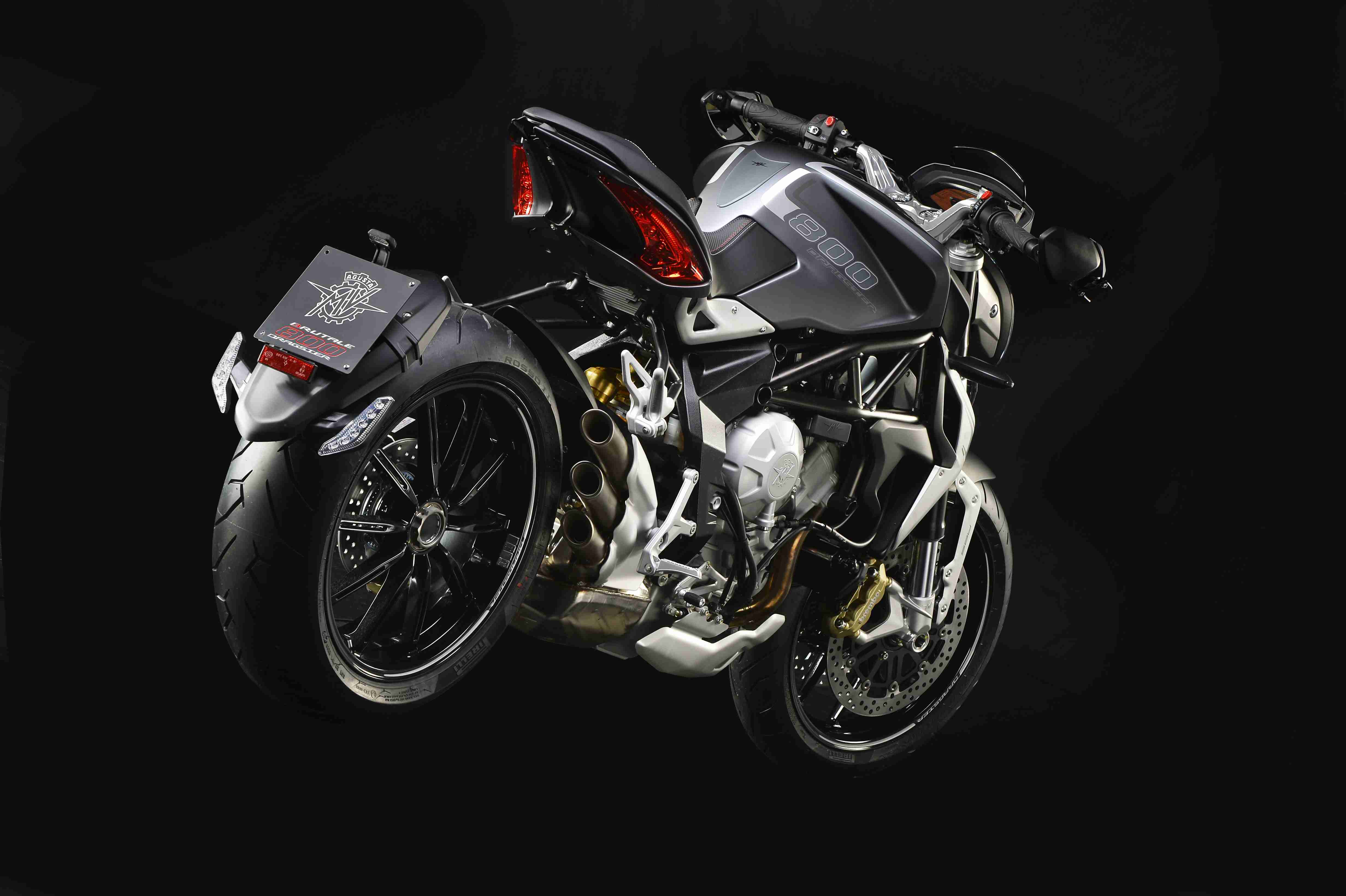

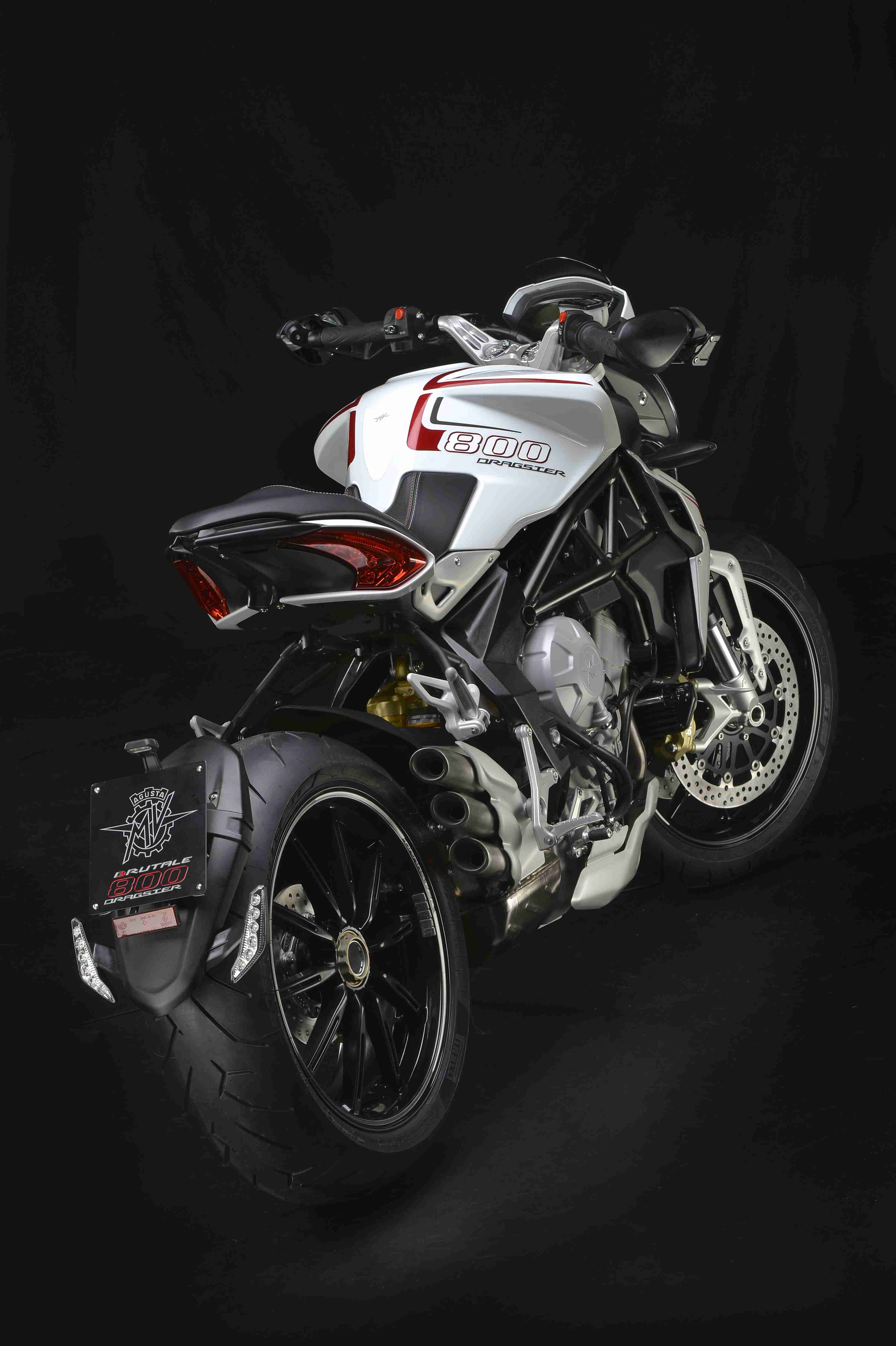

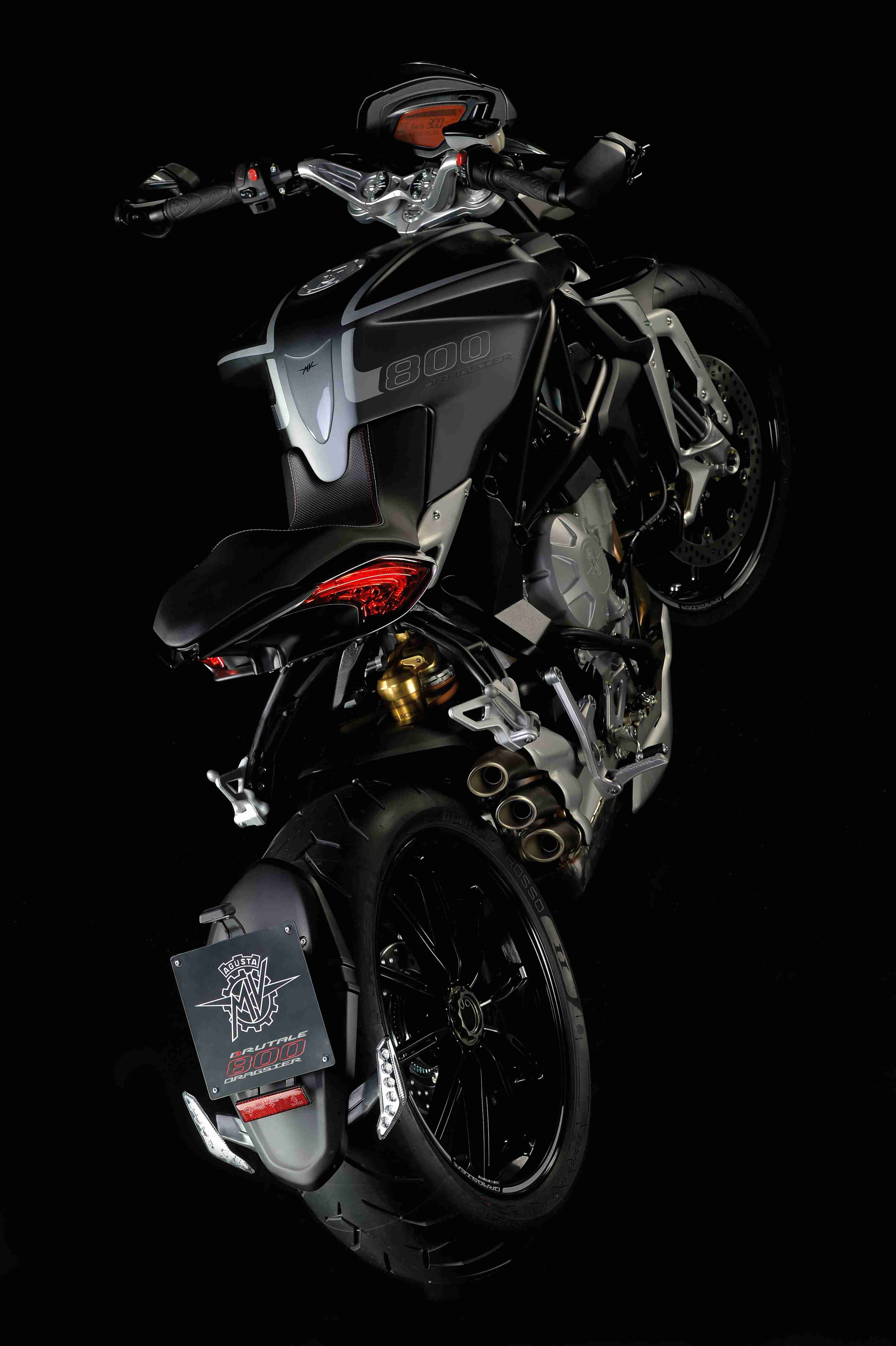

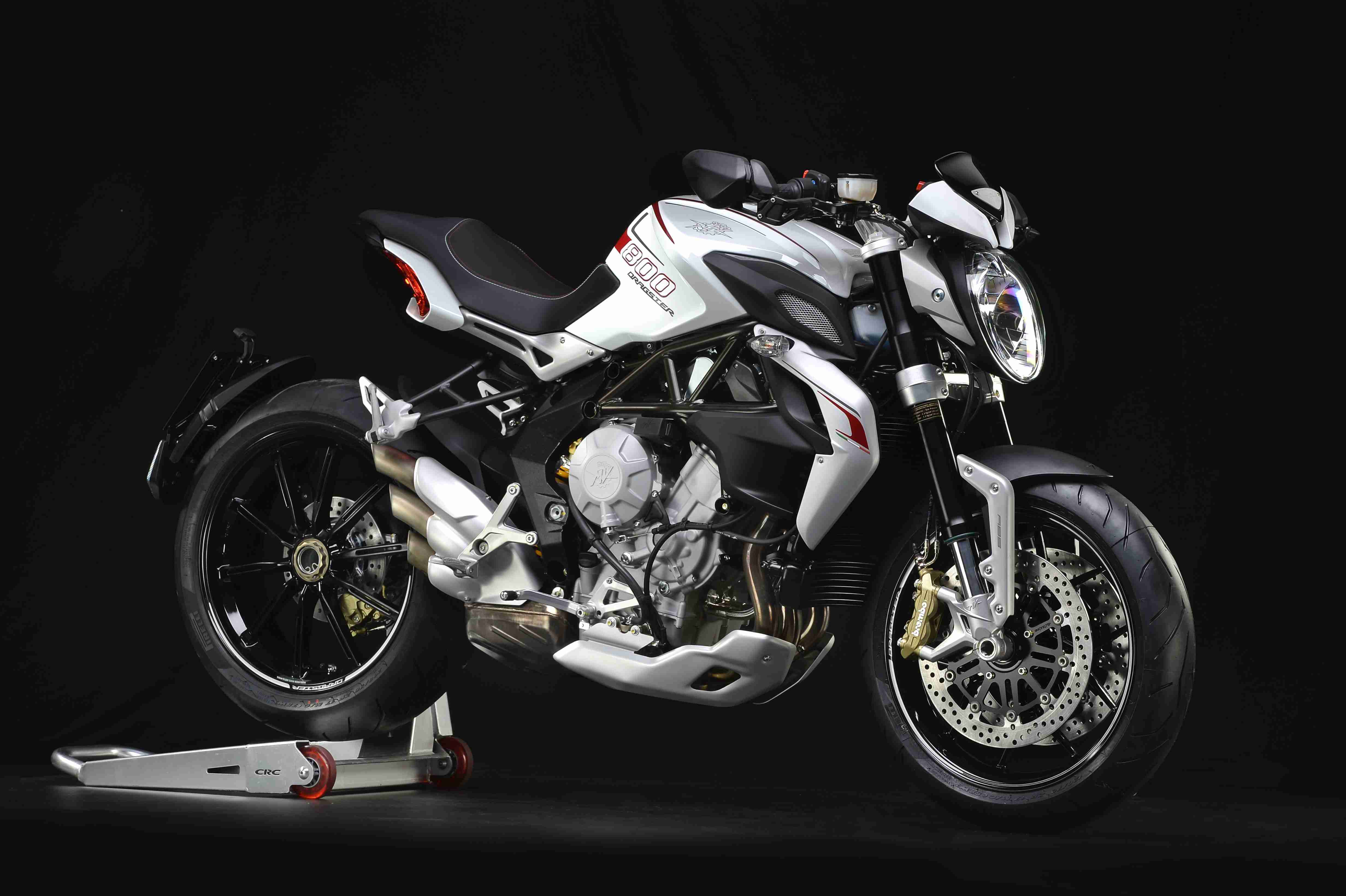

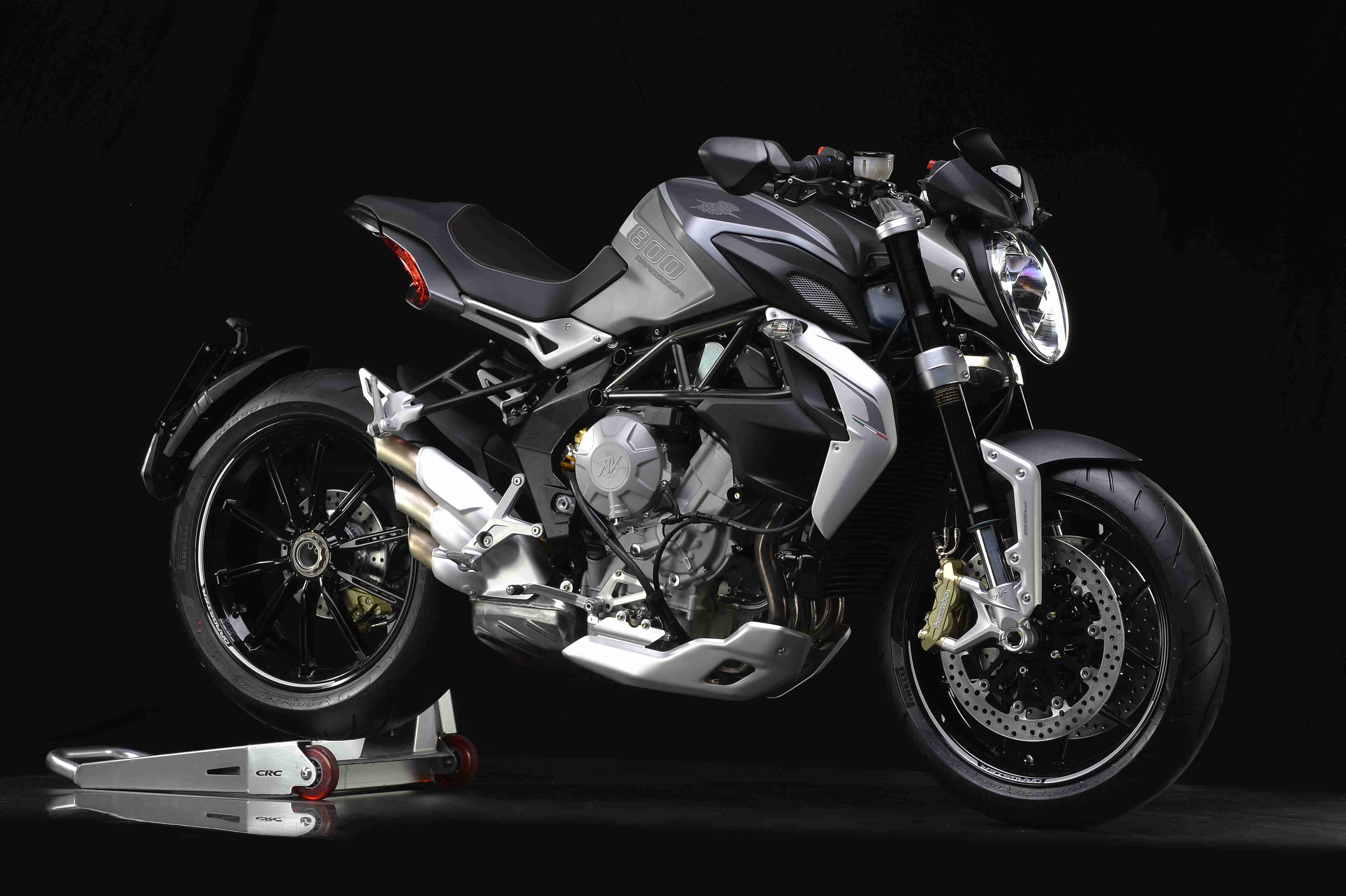

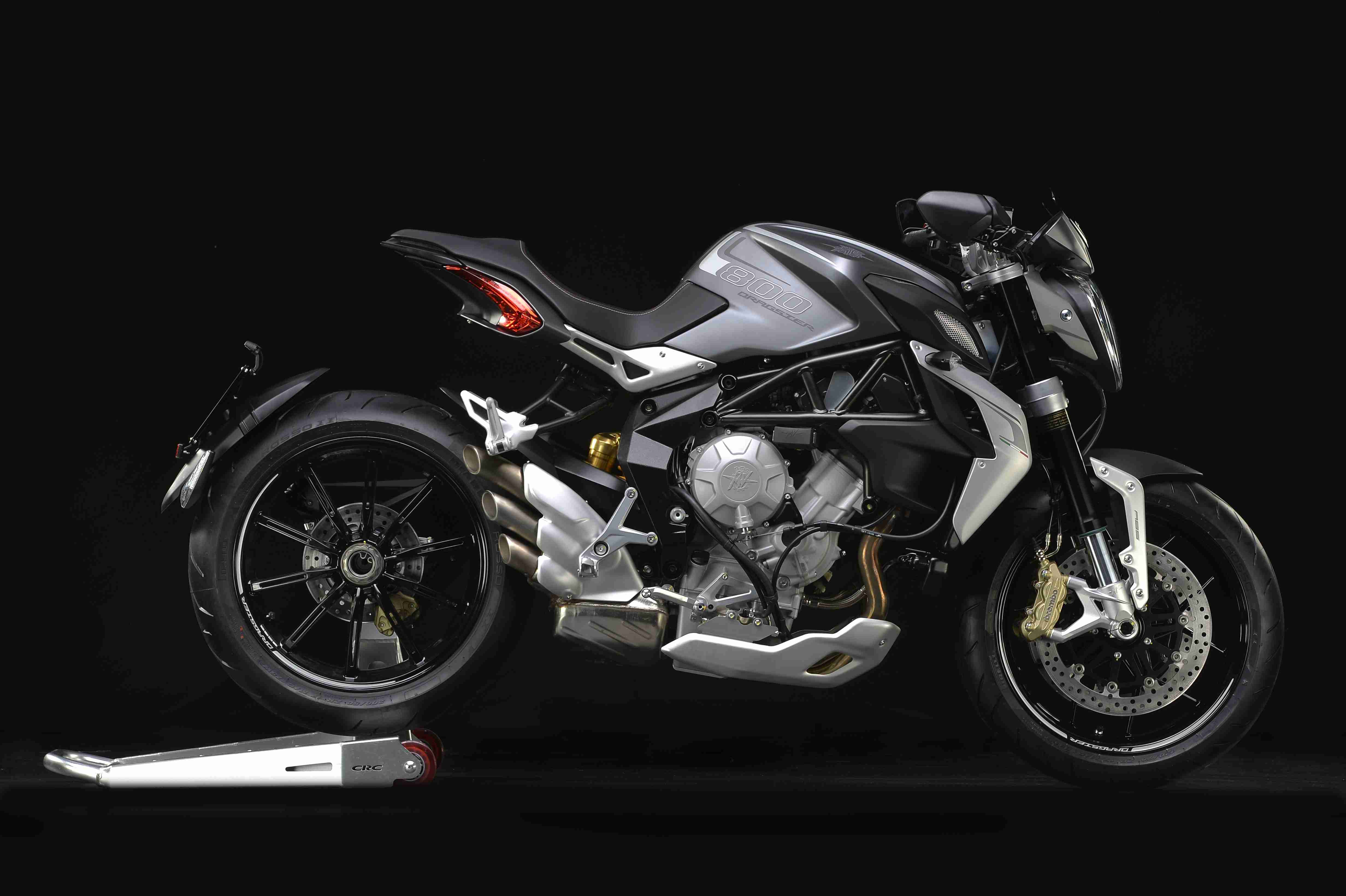

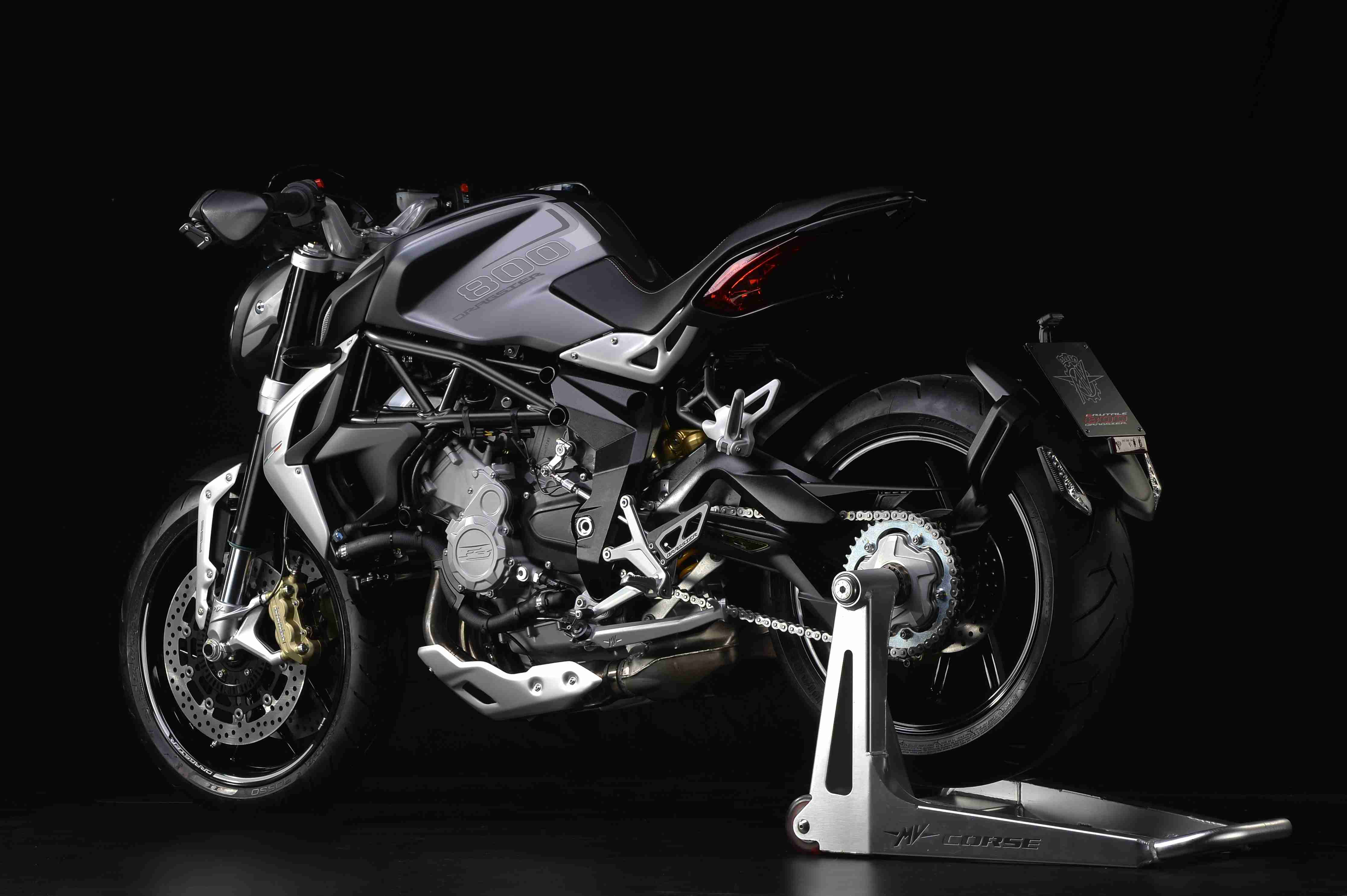

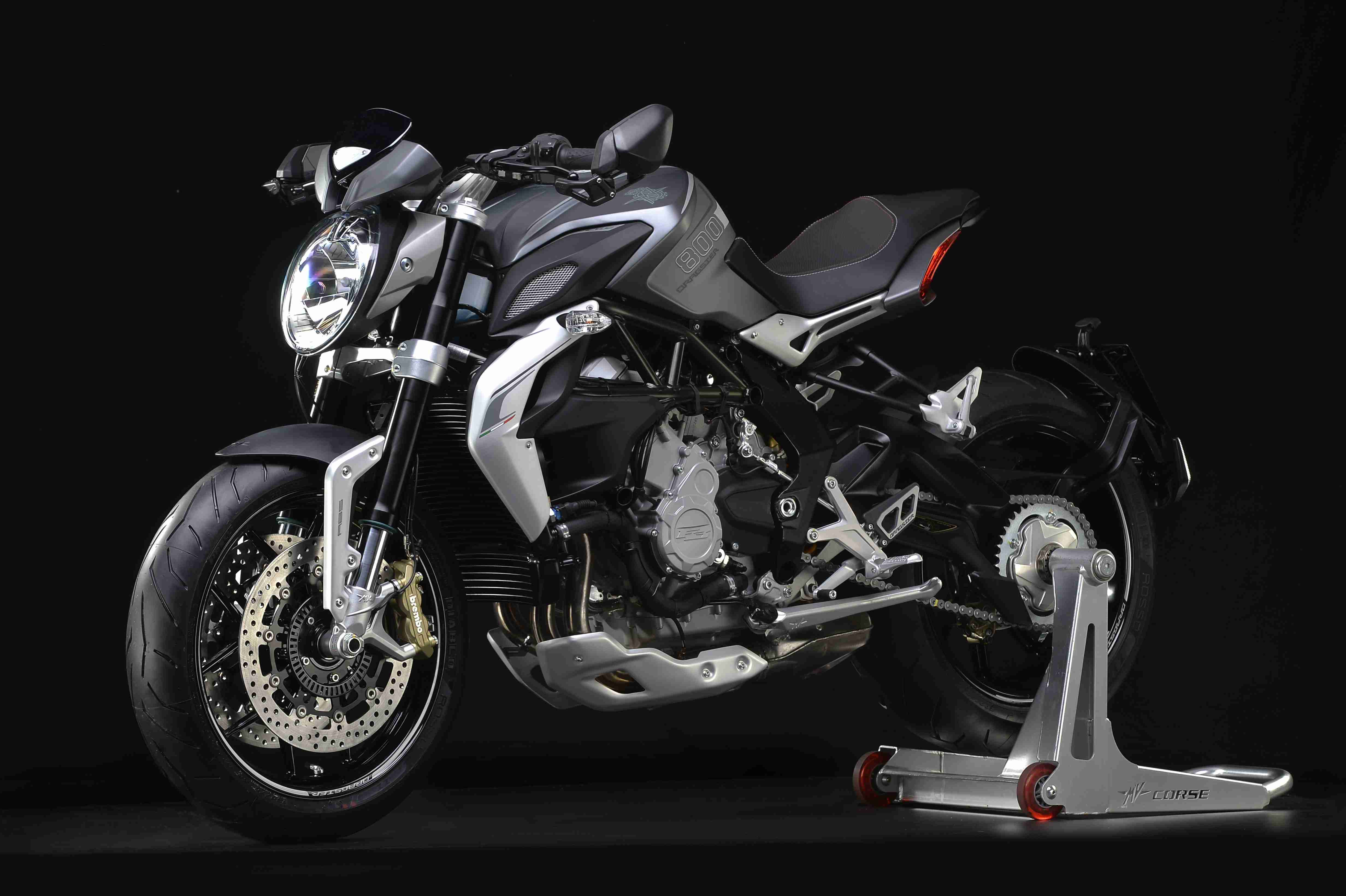

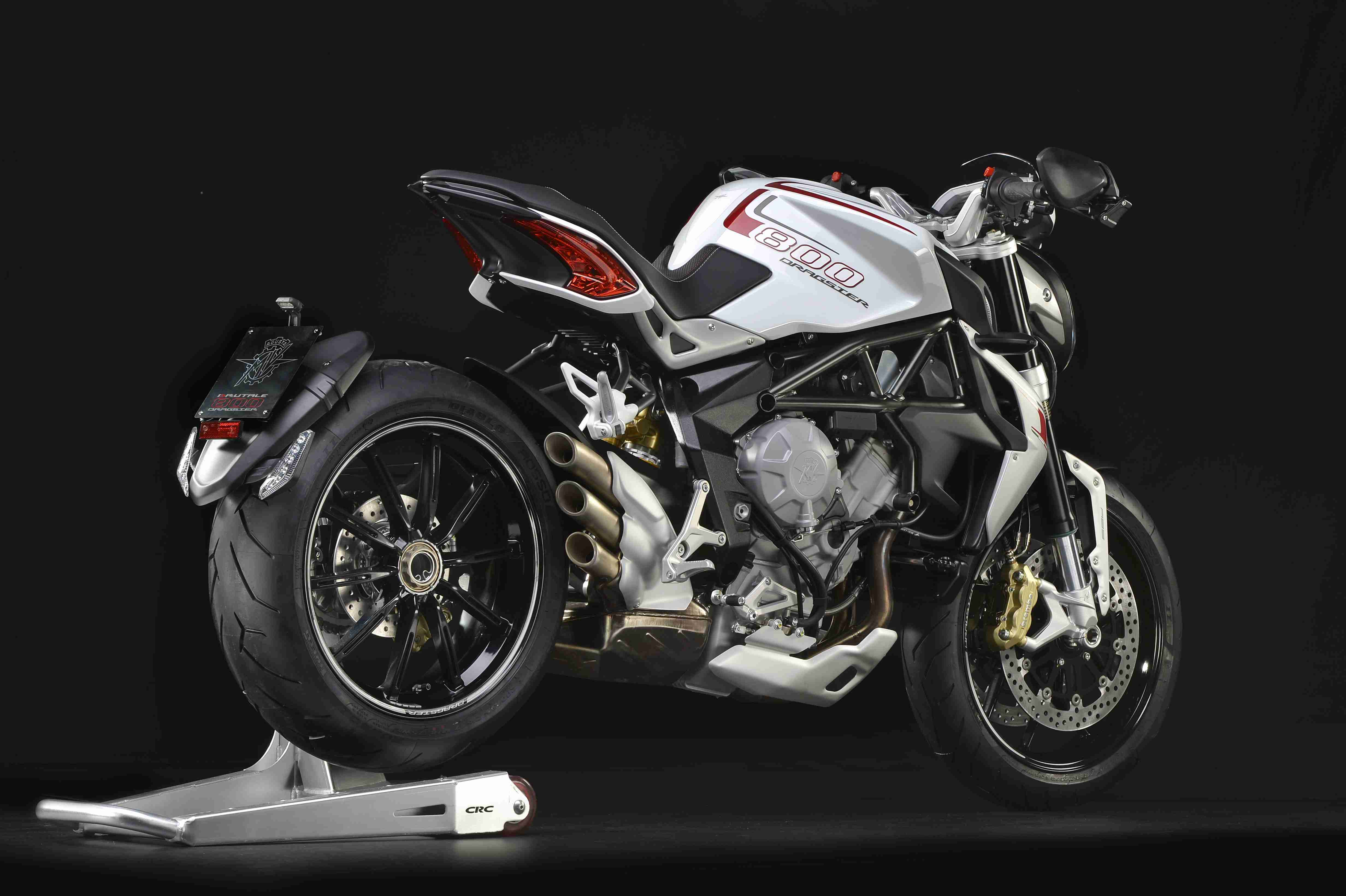

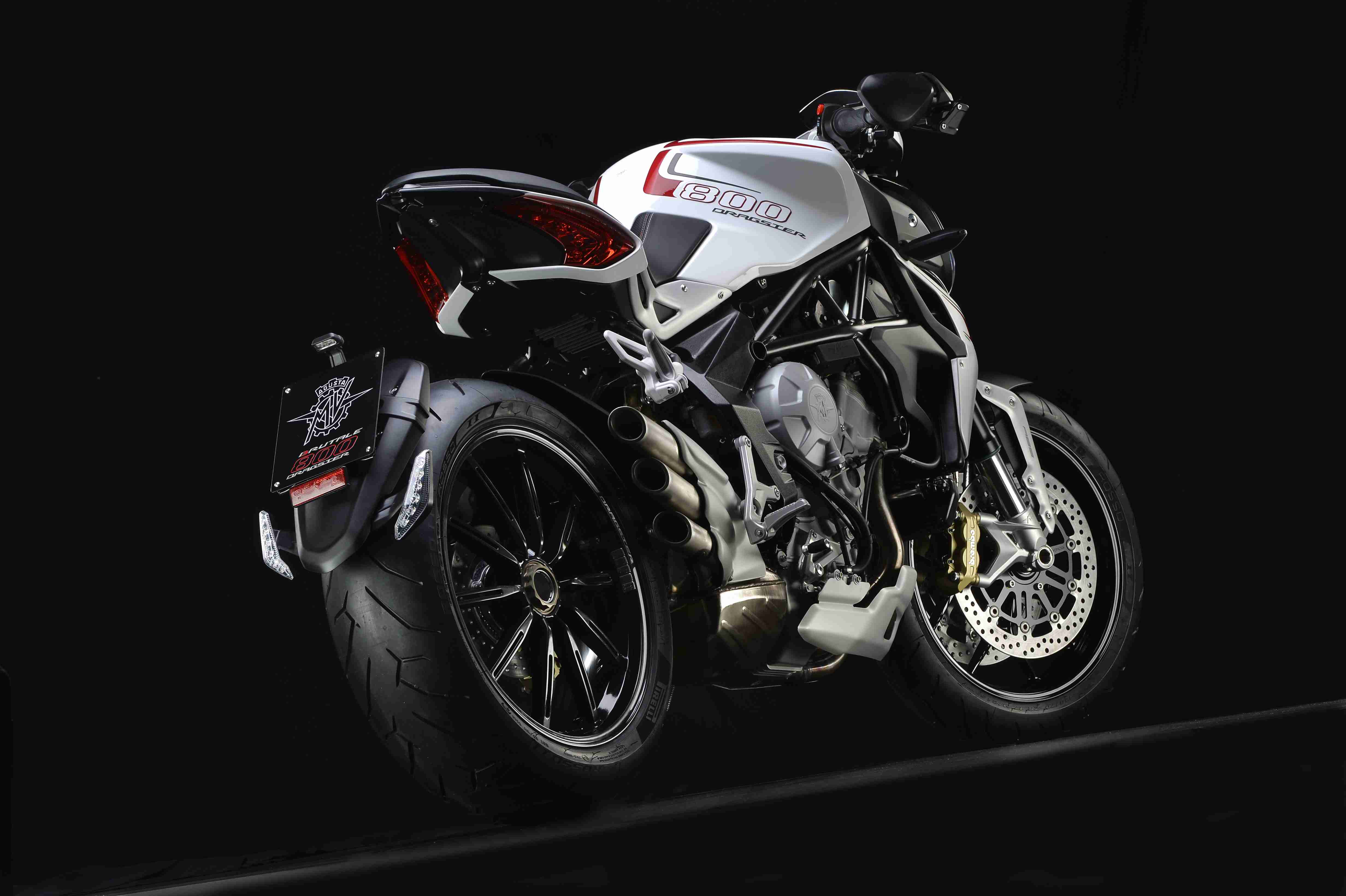

2014 MV Agusta Brutale 800 Dragster

MV Agusta continues to expand its motorcycle range: after introducing the Rivale 800, the emblem of motard-style sports appeal and ultra-dynamic road performance, the new Brutale 800 Dragster takes the very concept of ‘motorcycling passion’ and makes it breathtakingly tangible. No mere means of transport, a motorcycle is a symbol of freedom, of our need to get out there and explore and to savour mile after spine-tingling mile. Experiencing every single second of that freedom. The new Brutale 800 Dragster embodies and embraces the ambitions and dreams of every biker, making them nothing less than on-the-road reality. Thrills. Unforgettable moments.

The 3-cylinder Brutale 675 and 800 have introduced countless riders to that awesome buzz that goes with riding a high-performance naked bike. Outstanding rideability, power under constant control, lightness, great design, and exceptional value for money. This unmatched combination has made the 3-cylinder Brutale a huge success. Now, the Brutale 800 Dragster takes a big step forward into the future, yet does so with an attentive eye to the past. The most extreme Brutale ever is no fan of compromise: irreverent and brash, it is essential, brusque, outspoken and irascible. Packing a powerful punch, the Brutale 800 Dragster takes exhilaration to a whole new level. At the same time it draws on the ideas that shaped the first 4-cylinder Brutale bikes, the very essence of the naked concept and monuments to incomparable styling. Linking yesterday and tomorrow, the Brutale 800 Dragster embodies both experience and intuition, symbolising motorcycling past, present and forever. Pure essence. Pure thrills. 100% Brutale. With consummate Italian craftsmanship, the Brutale 800 Dragster re-evokes the epic DNA of the “dragster” race bikes, specifically built to release their explosive power in the few seconds that separate clutch release from the chequered flag. Seconds as scorching hot as the rubber left smoking on the tarmac. Seconds that speed by in the blink of a tachometer. In pursuit of unforgettable sensations. The Brutale 800 Dragster flings open the doors to the idea that freedom is attainable. On two wheels. Or even on just one.

2014 MV Agusta Brutale 800 Dragster specifications

  • Maximum speed: 245.0 km/h (153.1 mph)
  • FRAME
  • Type ALS Steel tubular trellis
  • Rear swing arm pivot plates material Aluminium alloy
  •  – FRONT SUSPENSION
  • Type Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
  • Fork dia.: 43 mm (1.69 in.)
  • Fork travel: 125 mm (4.92 in.)
  • REAR SUSPENSION
  • Type Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment.
  • Single sided swing arm material: Aluminium alloy
  • Wheel travel 125 mm (4.92 in.)
  • BRAKES
  • Front brake Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange
  • Front brake caliper Brembo radial-type, with 4 pistons Ã˜ 32 mm (Ø 1.26 in.)
  • Rear brake Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.
  • Rear brake caliper Brembo with 2 pistons – Ø 34 mm (Ø 1.34 in.)
  • ABS System Bosch 9 Plus with RLM (Rear wheel Lift-up Mitigation)
  • WHEELS
  • Front: Material/size Aluminium alloy 3.50 ” x 17 ”
  • Rear: Material/size Aluminium alloy 6.00 ” x 17 ”
  • TYRES
  • Front: 120/70 – ZR 17 M/C (58 W)
  • Rear 200/50 – ZR 17 M/C (75 W)
  • FAIRING
  • Material: Thermoplastic
  • ENGINE
  • Type: Three cylinder, 4 stroke, 12 valve
  • Timing system: “D.O.H.C”
  • Total displacement: 798 cm3 (48.68 cu. in.)
  • Compression ratio: 13.3:1
  • Starting: Electric
  • Bore x stroke: 79 mm x 54.3 mm (3.1 in. x 2.1 in.)
  • Max. power – r.p.m. (at the crankshaft): 92 kW (125 hp) at 11600 r.p.m.
  • Max. torque – r.p.m.: 81 Nm (8.25 kgm) at 8600 r.p.m.
  • Cooling system: Cooling with separeted liquid and oil radiators
  • Engine management system: Integrated ignition – injection system MVICS (Motor & Vehicle Integrated Control System) with three injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire.
  • Torque control with four maps
  • Traction Control with eight levels of intervention
  • Electronic quick-shift MV EAS (Electronically Assisted Shift)
  • Clutch Wet, multi-disc with mechanical drive
  • Transmission: Cassette style; six speed, constant mesh
  • Primary drive: 19/36
  • – Gear ratio
  • First gear: 13/37
  • Second gear: 16/34
  • Third gear: 18/32
  • Fourth gear: 19/30
  • Fifth gear: 21/30
  • Sixth gear: 22/29
  • Final drive ratio 16/41
  • – ELECTRICAL EQUIPMENT
  • Voltage: 12 V
  • Alternator: 350 W at 5000 r.p.m.
  • Battery 12 V – 8.6 Ah
  • – DIMENSIONS AND WEIGHT
  • Wheelbase: 1380 mm (54.30 in.)
  • Overall length: 2060 mm (81.06 in.)
  • Overall width: 825 mm (32.46 in.)
  • Saddle height: 811 mm (31.91 in.)
  • Min. ground clearance: 149 mm (5.86 in.)
  • Trail: 95 mm (3.74 in.)
  • Dry weight: 167 kg (368.2 lbs.)
  • Fuel tank capacity: 16.6 l (4.39 U.S. gal.)
