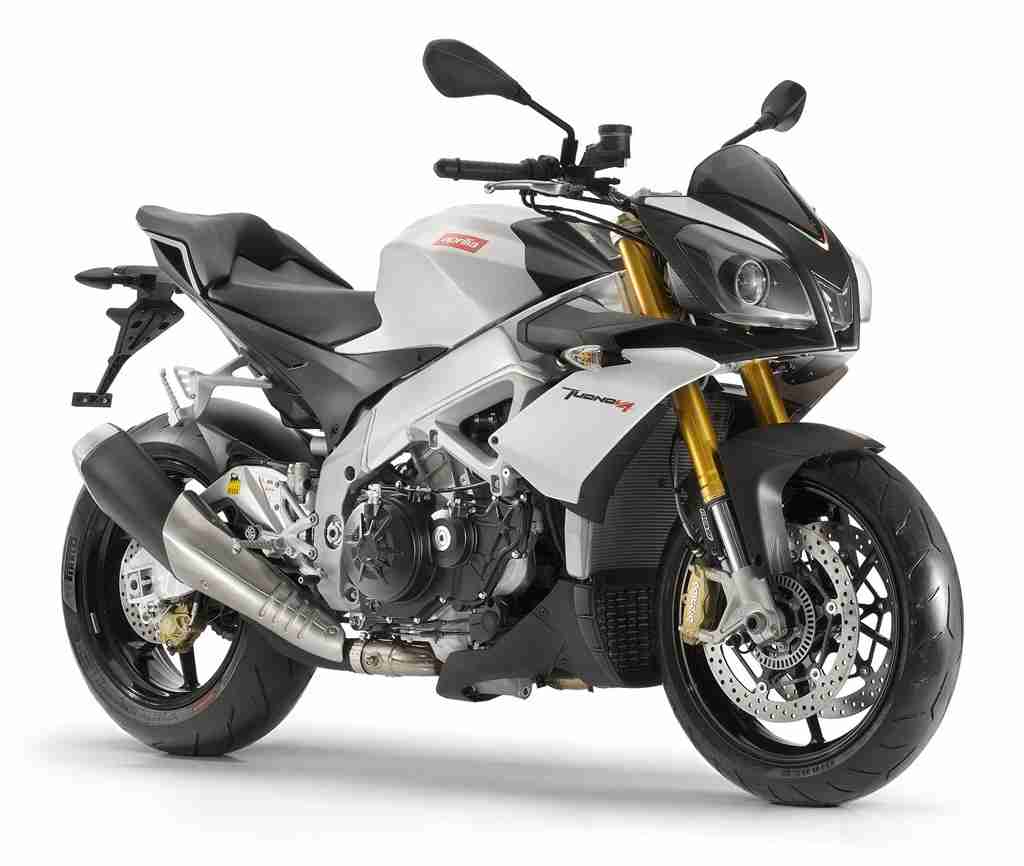

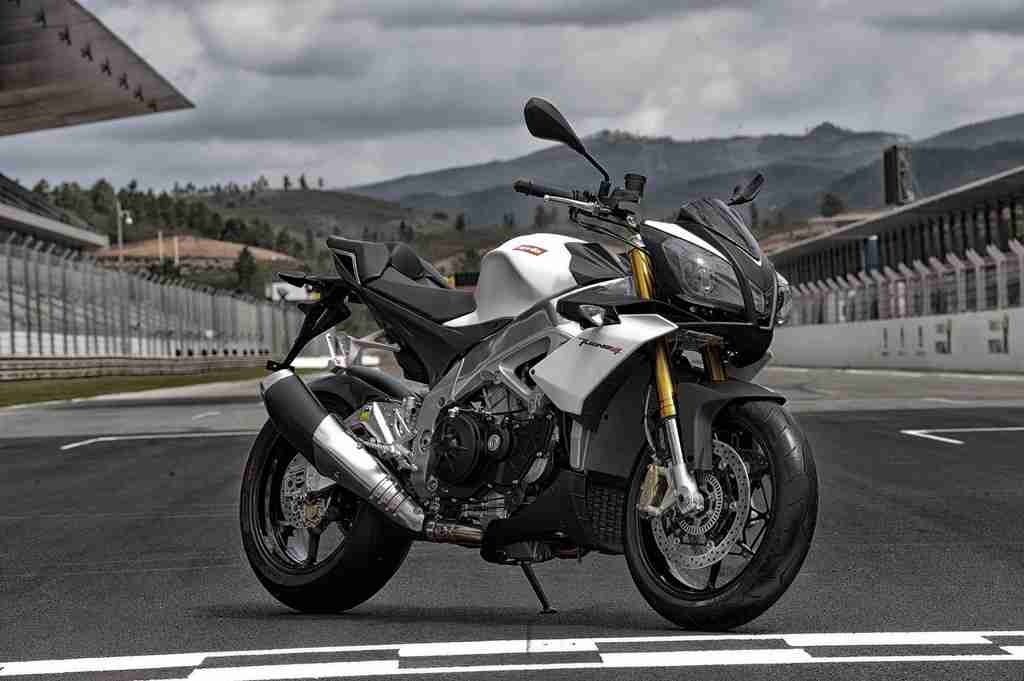

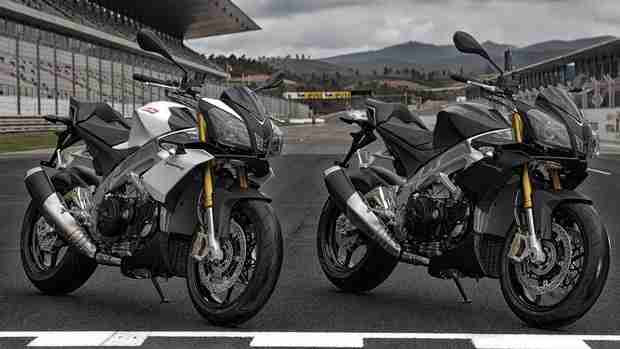

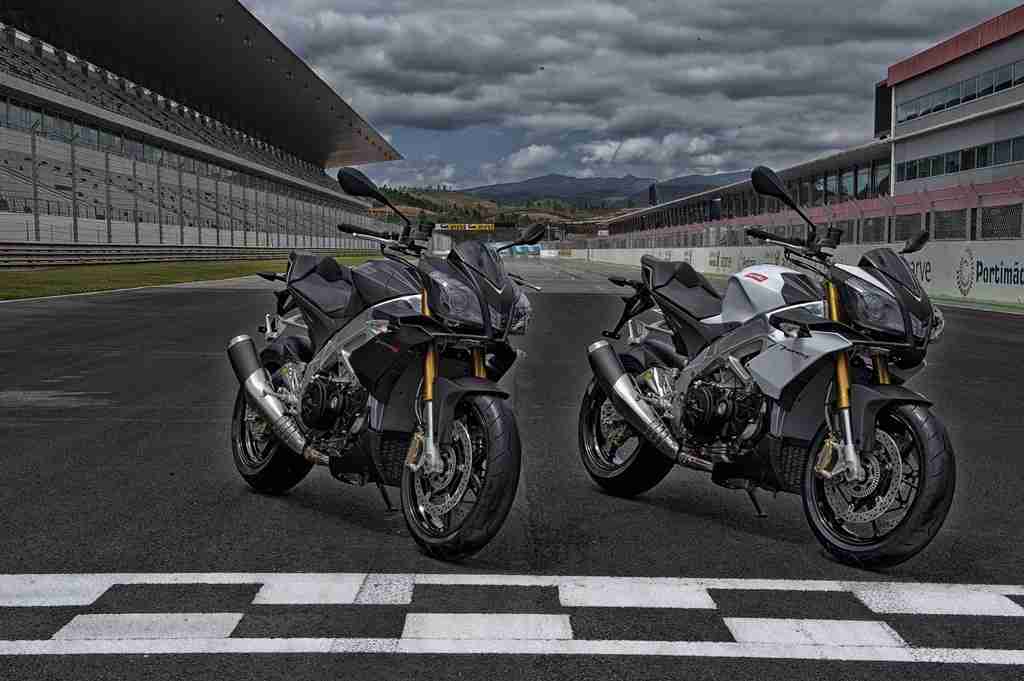

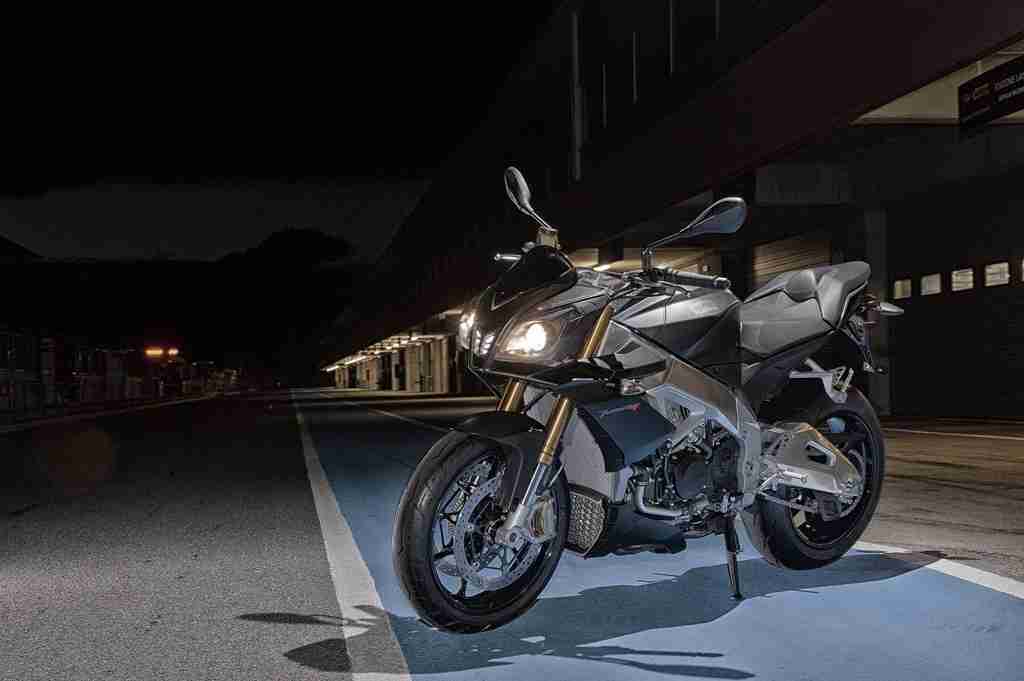

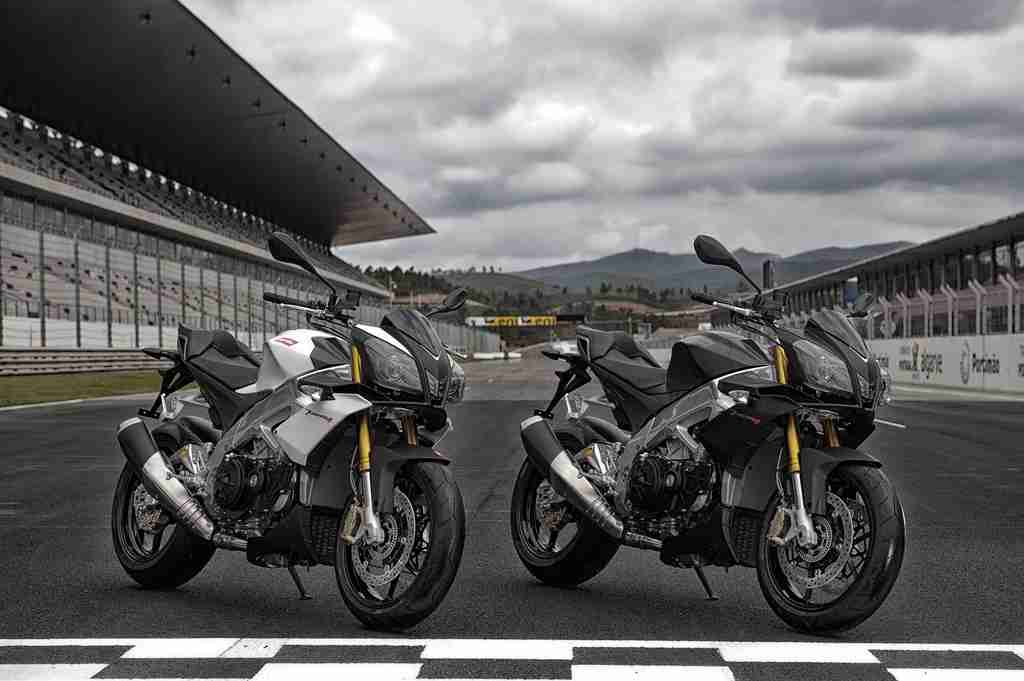

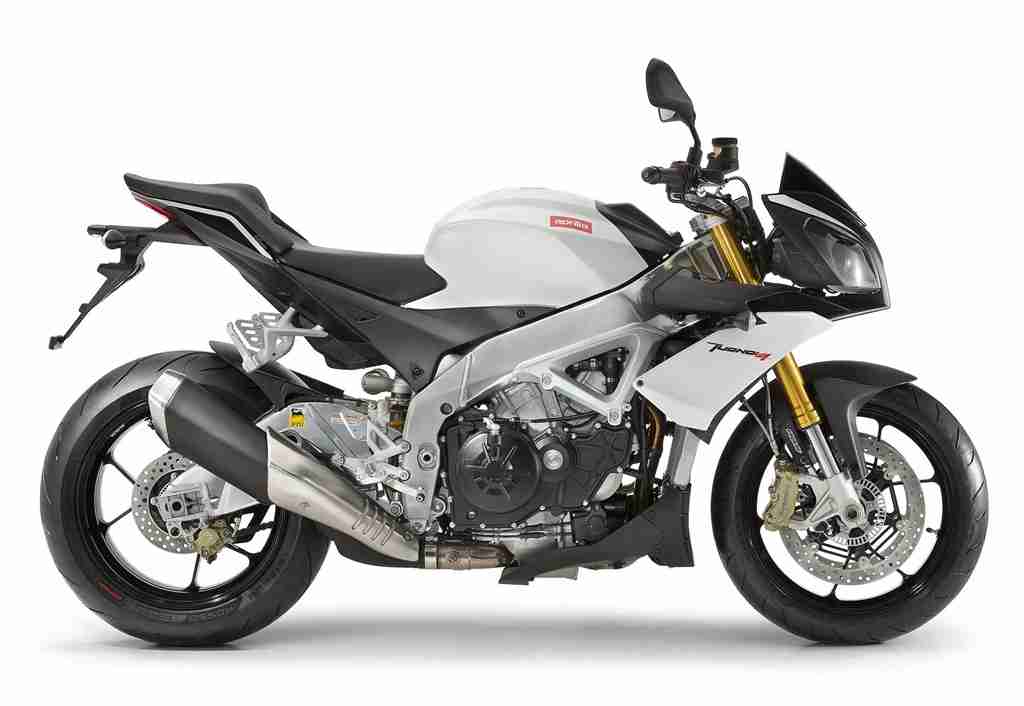

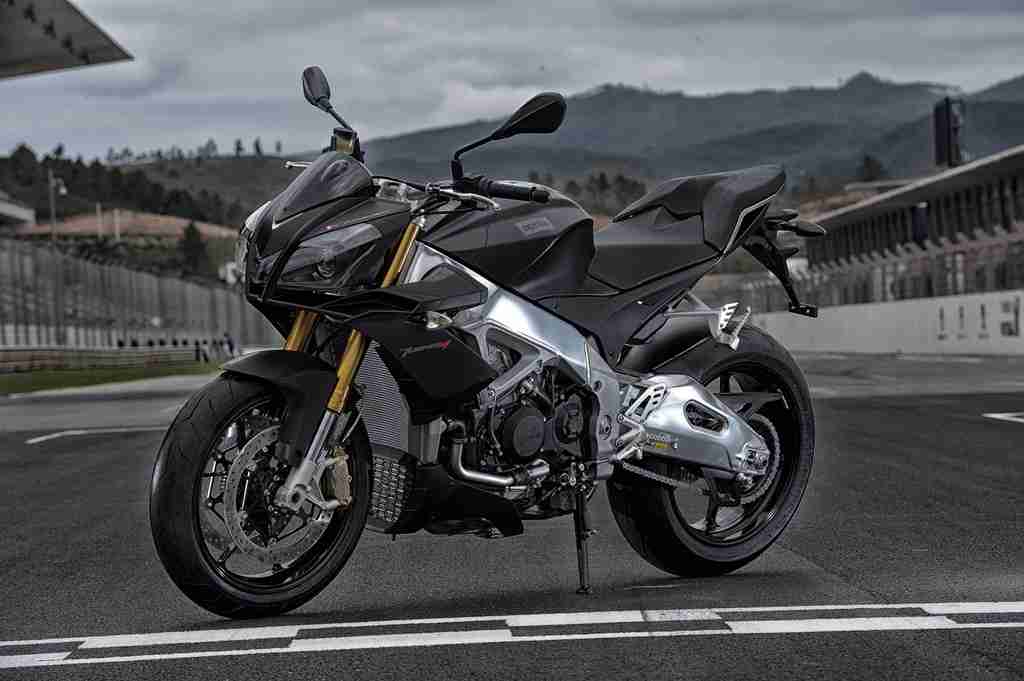

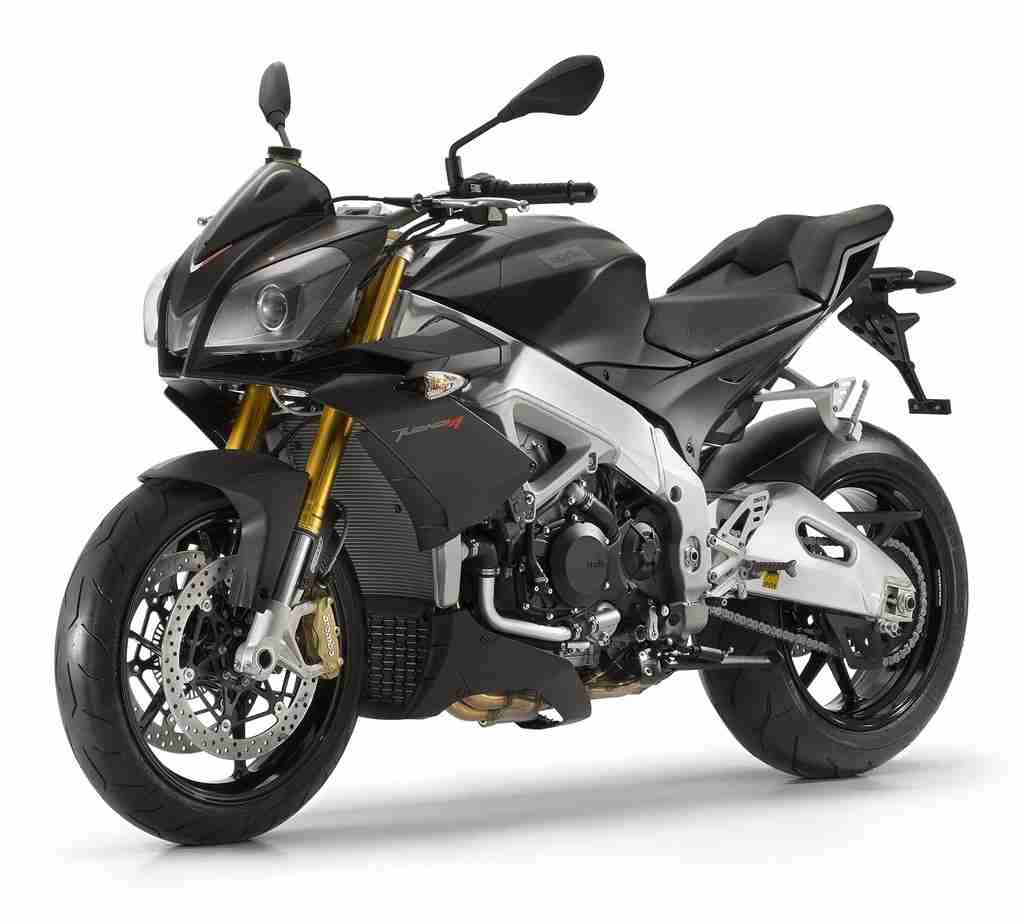

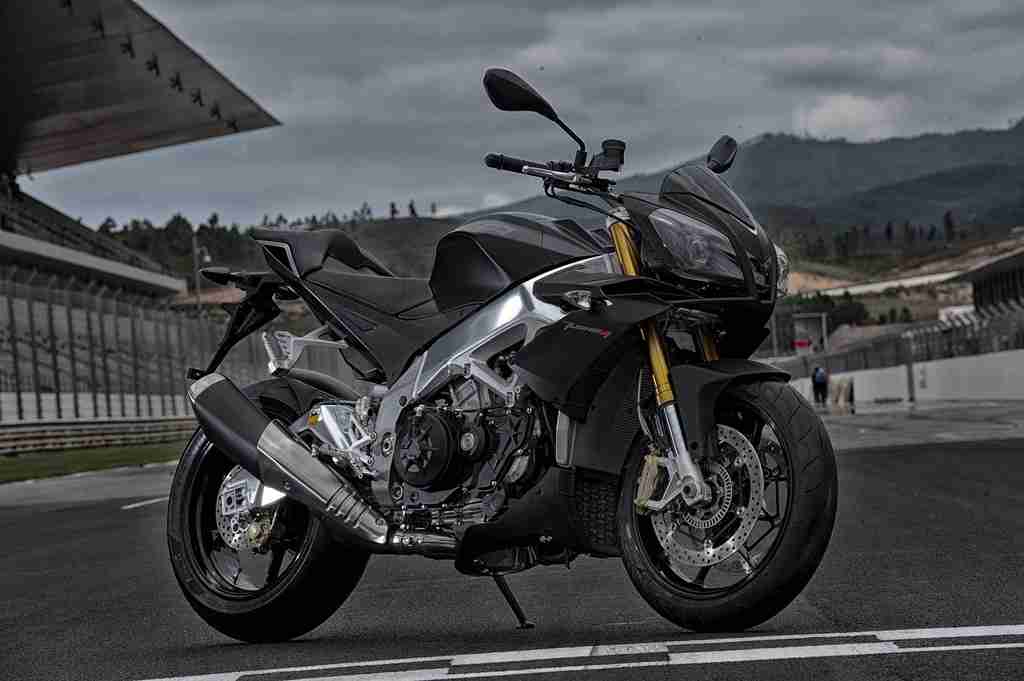

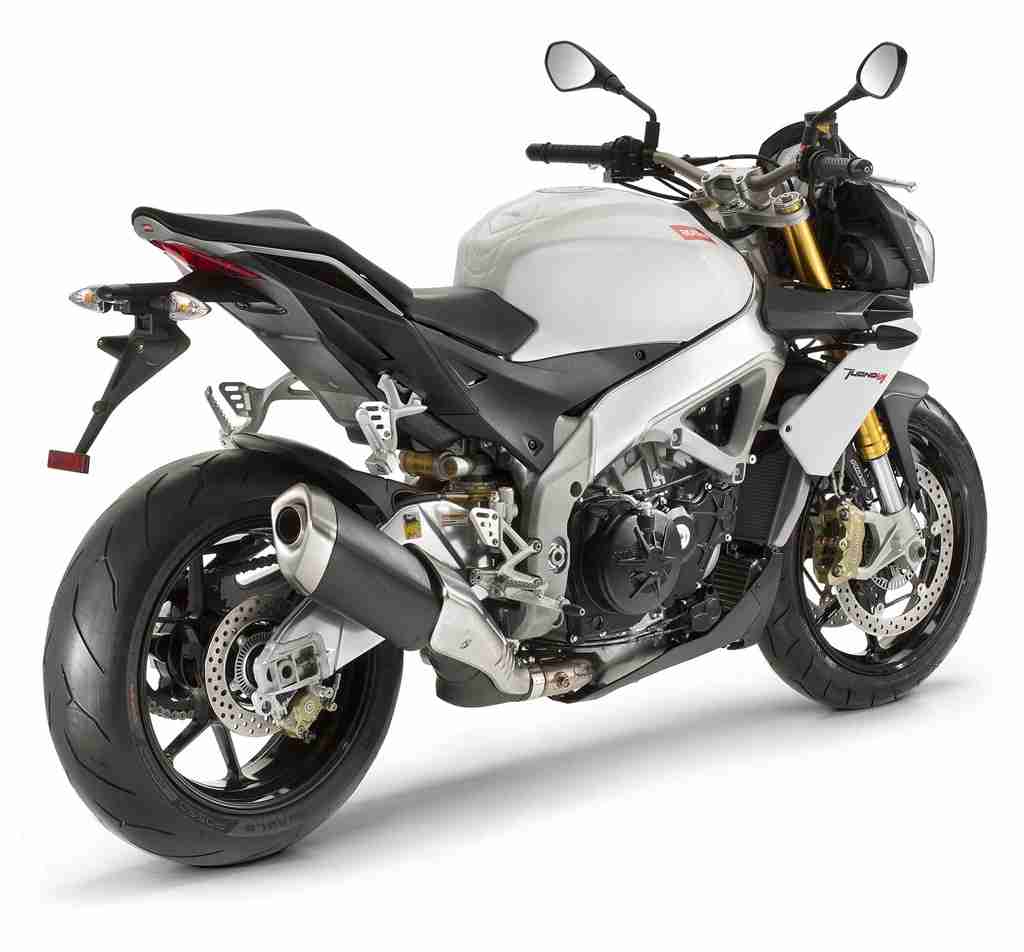

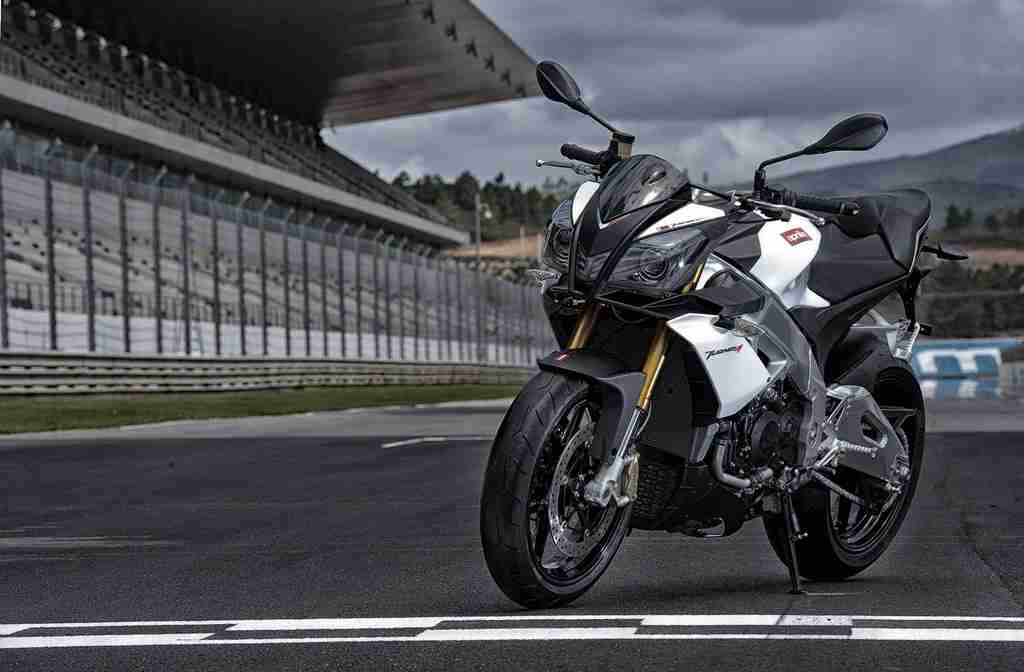

The 2014 Aprilia Tuono V4 R APRC for is here, as if it already was not near perfect, it now produces 167 horses and ABS gets added to the mixture. The APRC package is also updated to the second generation making it the same one on the RSV4. Other changes to the 2014 version includes a higher capacity tank that now is 18.5 litres and a better seat. The engine has a revised timing system, longer intake ducts and a new crankshaft flywheel to improve overall smoothness. The gear rations have been shortened in the first three for quicker acceleration and surprisingly peak power RPM has been dropped to 11,500. Check out the specifications below along with more photographs.

2014 Aprilia Tuono V4 R APRC ABS Technical Specifications

  • Engine type: Aprilia longitudinal 65° V-4 cylinder, 4-stroke, liquid cooling system, double overhead camshafts (DOHC), four valves per cylinder
  • Bore and stroke: 78 x 52.3 mm
  • Total engine capacity: 999.6 cc
  • Compression ratio: 13:1
  • Maximum power at crankshaft: 167 HP (125 kW) at 11,500 RPM
  • Maximum torque at crankshaft: 111.5 Nm at 9,500 RPM
  • Fuel system: Airbox with front dynamic air intakes; 4 Weber-Marelli 48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management.
  • Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Road)
  • Ignition: Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coil” type coils
  • Start up: Electric
  • Exhaust system: 4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 3)
  • Alternator: Flywheel mounted 450W alternator with rare earth magnets
  • Lubrication: Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
  • Gearbox: 6-speed cassette type gearbox: 1st: 39/15 (2,600); 2nd: 33/16 (2.063); 3rd: 34/20 (1,700); 4th: 32/22 (1,455); 5th: 34/26 (1,308); 6th: 33/27 (1,222); Gear lever with Aprilia Quick Shift electronic system (aQS)
  • Clutch: Multiplate wet clutch
  • Primary drive: Straight cut gears and integrated flexible coupling, drive ratio: 73/44 (1,659)
  • Secondary drive: Chain: Drive ratio: 42/16 (2,625)

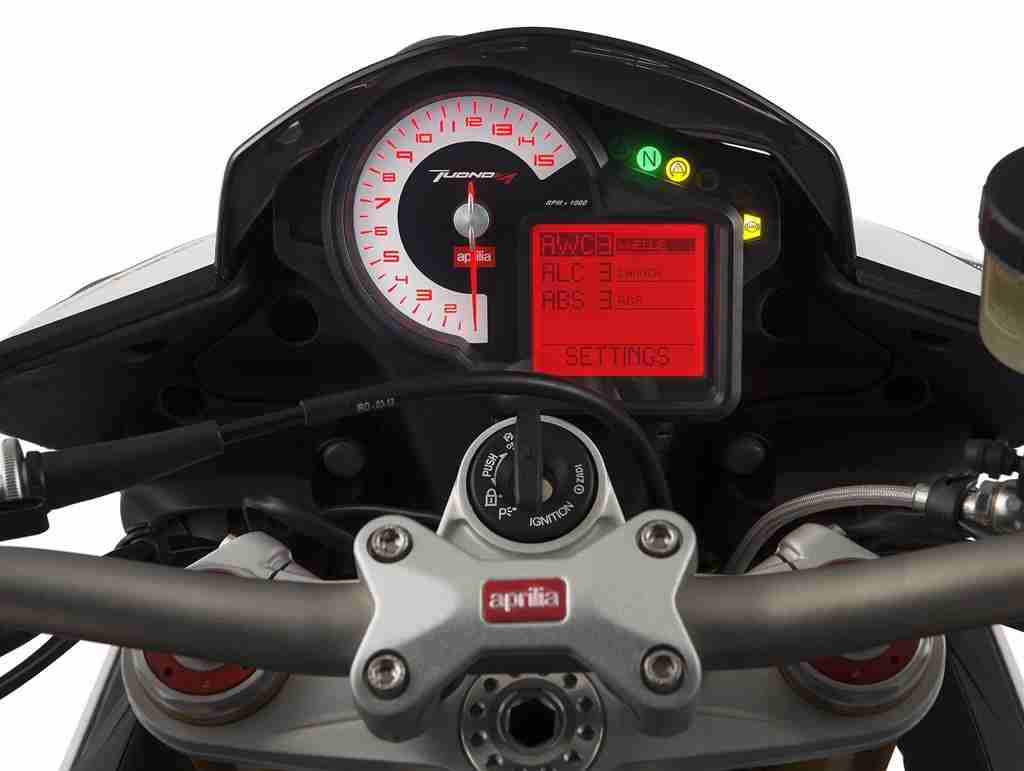

  • Traction management: APRC System (Aprilia Performance Ride Control), which includes Traction Control (aTC), Wheelie Control (aWC), Launch Control (aLC), all of which can be configured and deactivated independently.
  • Aluminium dual beam chassis with pressed and cast sheet elements.
  • Steering Damper: Sachs
  • Front suspension: Sachs upside-down “one by one” fork, stanchions 43 mm. Forged aluminium feet for radial calliper mounting; Completely adjustable spring pre-load and hydraulic compression and rebound damping; Wheel travel: 120 mm
  • Rear suspension: Double braced aluminium swing-arm; mixed low thickness and sheet casting technology; Sachs piggy back mono-shock with completely adjustable: spring pre-load and hydraulic compression and rebound damping. APS progressive linkage; Wheel travel: 130 mm

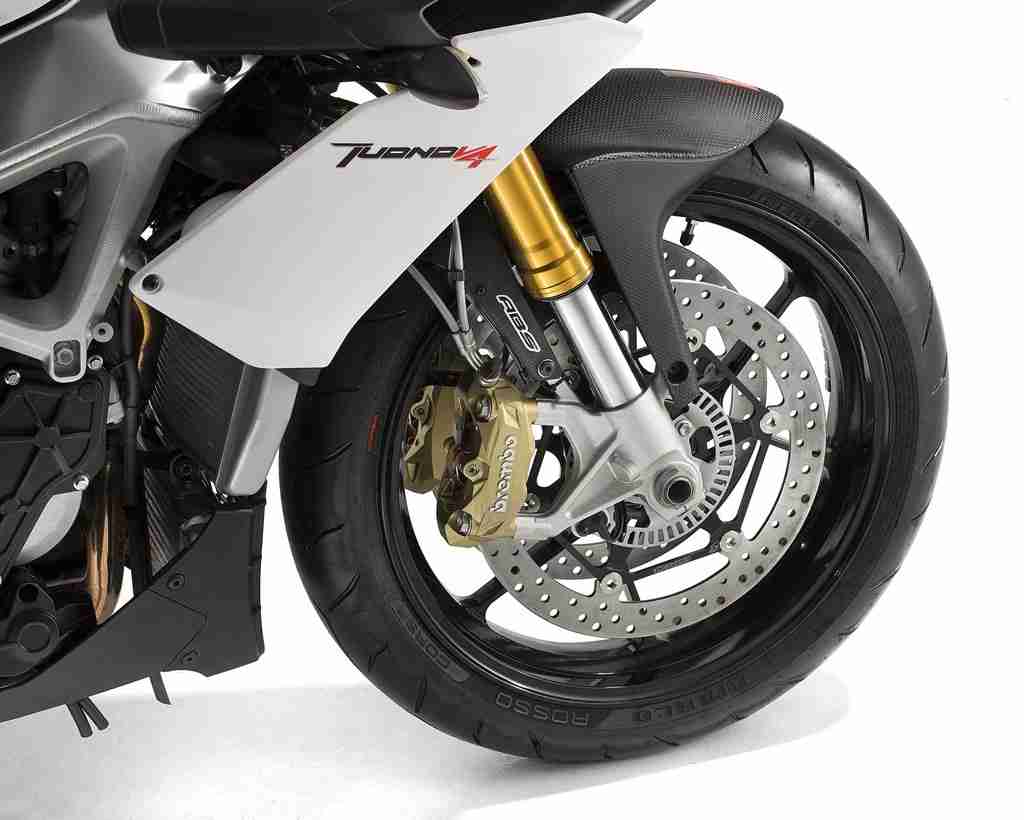

  • Front Brakes: Dual 320 mm floating stainless steel discs with lightweight stainless steel rotor with 6 studs. Brembo monobloc radial callipers M432 with 4 horizontally opposed 32 mm Ø pistons. Sintered pads. Axial pump master cylinder and metal braided brake hoses.
  • Rear Brakes: 220 mm diameter disc; Brembo floating calliper with two 32-mm isolated pistons. Sintered pads. Pump with integrated tank and metal braided hose.
  • ABS: Bosch 9MP, adjustable on 3 maps, featuring RLM strategy and disconnectable.
  • Wheel rims: Cast aluminium wheels with 3 split spoke design: Front.:3.5”X17”; Rear: 6.00”X17”
  • Tires: Radial tubeless, Front: 120/70 ZR 17; Rear: 190/55 ZR 17 (alternative: 190/50 ZR 17; 200/55 ZR 17)
  • Dimensions
:
  • Max. length: 81.2 inches
  • Max. width: 31.4 inches (at the handlebar)
  • Max. height: 42.9 inches
  • Min. height from the ground: 4.9 inches
  • Saddle height: 32.8 inches
  • Wheelbase: 56.8 inches
  • Trail: 4.2 inches
  • Steering angle: 25°
  • Dry weight: 408 lbs
  • Tank: 18.5 litres (4.88 gallons)
