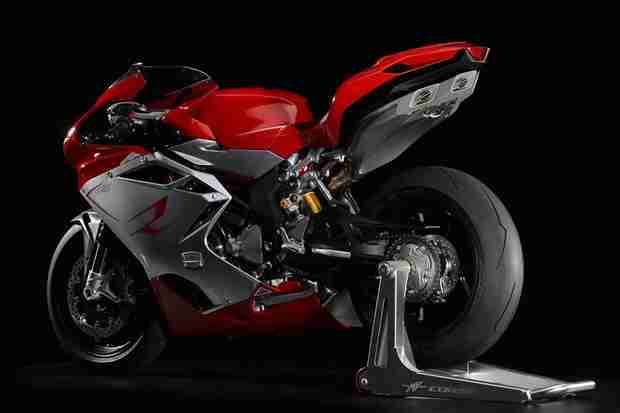

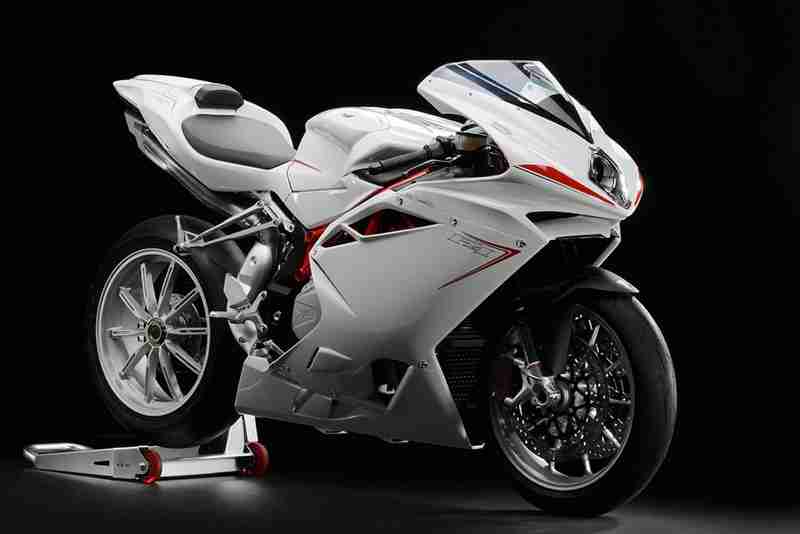

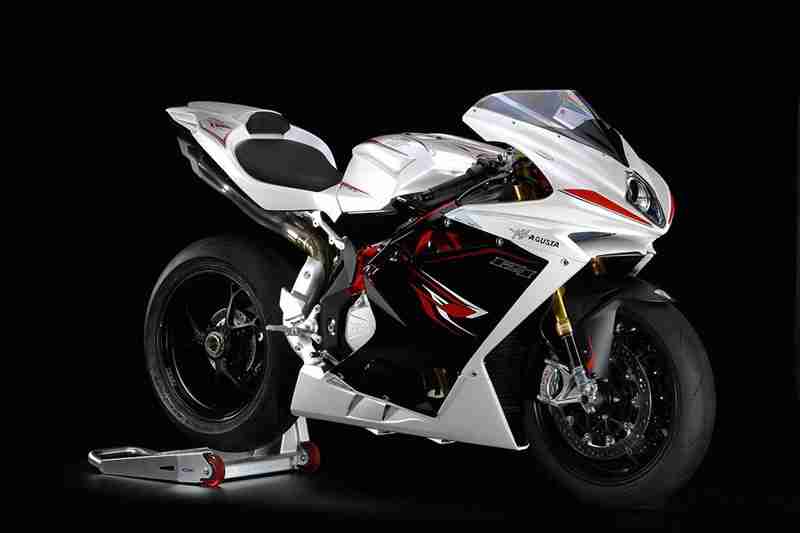

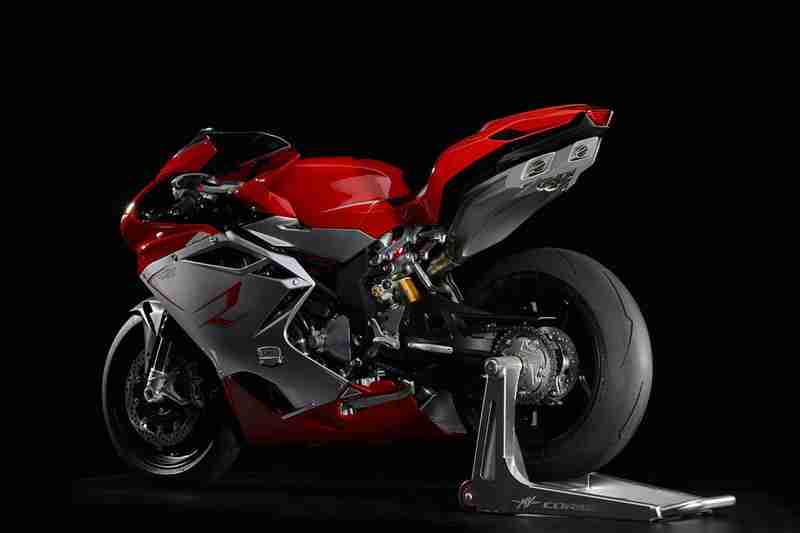

MV Agusta has been on a roll for the last week and have now unveiled the 2013 version of the F$ range and promise that this is the best F4 yet that will be available in three versions, the F4, the F4 R and the F4 RR.
The front headlight is flanked by two distinctive light guides positioned on the leading edge of the spoiler: in this way an aerodynamic element becomes a distinctive element of the front view day or night, as well as helping to improve active safety by improved frontal visibility. Similarly the new rear light gains intensity through an integrated light guide.
Completely new wheel designs employing considerable weight reduction are now available in two versions: the first, F4, utilizing razor thin spokes and a silver finish, the second of F4 R, F4 RR, further reduces the weight and material thickness through the process of forging aluminum alloy, besides the implementation of a race inspired design. There has been a significant update to the four tailpipe exhaust system, a characteristic feature of the F4 from its incarnation. The two external terminals are now much shorter and tapered, the central pair extends up above the end of the tailpiece.
A four-cylinder advanced “short stroke” engine powers the entire F4 range. Piston diameters of 79mm are combined with a stroke of 50.9 mm. The peak rev limit has been raised to 14,000 RPM for the F4 RR.
The engine has undergone a thorough update of the distribution system: the intake and exhaust valves now use a single spring instead of the two of the previous model. In this way the moving mass is reduced to the advantage of the speed reached by the motor and the speed and reactivity to engine rpm. The piston blanks are hard anodized treated to be even more durable and reliable. The connecting rods of the F4 RR are made of titanium, a solution more akin to a GP racer not a production machine, to offer improved strength and lightweight, matched to a rebalanced crankshaft.
The oil circuit has been redesigned, inside and outside the engine crankcase with the aim of ensuring perfect main bearings and connecting rod lubrication increasing reliability, even under extreme working loads. The operating temperature of the engine is now lower, due to the greater radiator efficiency and new oil lines. The short-stroke inline four-cylinder is available in two power configurations: F4 and F4 R reaches 195 hp, while F4 RR is pushed to a record 200.8 hp.
50 mm diameter throttle bodies are employed with a revised variable length intake tract (TSS). The gearbox as on all the MV Agusta four-cylinder engines, is a six-speed unit, with the clutch featuring a mechanical slipper device. Four engine maps are available: three default and to customizable by the pilot. The system MVICS (Motor & Vehicle Integrated Control System) is now integrated onto the new F4 ensuring accurate multimap engine management and driver assistance devices: traction control, anti-wheeling and shifter EAS (Electronically Assisted Shift).
The central element is the Ride-By-Wire system: presented for the first time on the three-cylinder F3 675, it has been fully optimized and specifically redeveloped for the new F4. The system has electronic redundancies to ensure maximum effectiveness and the safety required: the data that arrives from the two potentiometers is cross-examined with analog signals, and a third sensor confirms the requirement of complete throttle closure. Two additional sensors are arranged on the throttle bodies. Completely new and developed specifically for F4 is the inertia platform sensor arrangement: it uses three gyroscopes and three accelerometers and provides the electronic control unit an array of information about the of the vehicle dynamics, moment by moment. Consequently, the intervention of traction control and anti-wheeling are particularly accurate thanks to the encoder placed on the front wheel. This system permits improved safety characteristics as well as performance.
The algorithms that define the function of the system MVICS, are in fact maximized continuously to provide the maximum available torque at the rear wheel, relative to the conditions of the asphalt and pilot request. The electronic assisted gear shift, standard on all three versions, reduces the amount of time required to change gears.
Another innovation is the system which allows you to choose your own settings in respect to the pre selected defaults, Normal, Sport and Rain. This enables you to customize five parameters (sensitivity of throttle, torque, speed limiter, engine response and engine braking), so you can construct a map of engine management that encompasses your personal riding style. The structure and geometry characteristics of the new F4 are unchanged. The main section of the frame, in fact, is made of CrMo steel tubes united to a pair of cast aluminum alloy plates which form a complete structure and the fulcrum point for the sculpted single-sided swingarm. The new frame has been further optimized to reduce weight without sacrificing rigidity. The F4 RR also is hand welded with TIG technology and uses a dedicated steel, with exceptional mechanical properties.
The three versions of the new model offer three distinct combinations of fork and shock while all providing the established traditional handling strengths of F4. The F4 equipment includes a 50mm diameter Marzocchi fork and Sachs shock that are both fully adjustable. F4 R utilizes a race specification Ã–hlins, again fully adjustable. Ã–hlins suspension with electronic control allows the driver to choose between different setups directly from the dashboard. As aforementioned there are specific modes of power delivery for the four cylinder engine; the pilot, however, may also adjust the suspension in a completely autonomous way from the engine maps. The system provides separate control for compression damping and rebound damping, while customizing the spring preload is manual. The electronic steering damper allows to choose between manual or automatic adjustment, in which case the response varies as a result of vehicle speed.
The brake system on the F4 RR is composed of two 320 mm diameter front discs with steel flanges. They gripped by the new Brembo Monobloc M50. The system is completed by a four piston rear caliper together with a 210 mm diameter disc. The F4 and F4 R replaces the monobloc found on the F4 RR with the effective race bred Brembo M4 front brake calipers and Nissin master cylinders. The new F4 range, consisting of the three versions (F4, F4 R and F4 RR), is proposed for 2013 with graphics and colours never seen before. Each version is available in two colour combinations.
MV Agusta F4 highlights
- Short-stroke inline four-cylinder engine with central cam chain and radial valves
- MVICS Technology (Motor & Vehicle Integrated Control System)
- ELDOR electronics package with Ride-By-Wire system and four maps engine
- Throttle sensitivity adjustable (selectable between Normal, Sport and Rain)
- Max torque (selectable between Normal, Sport and Rain)
- Variable Engine response (selectable between Normal, Sport and Rain)
- Engine Braking (selectable between Normal, Sport and Rain)
- RPM limiter (selectable between Normal, Sport and Rain)
- Inertial vehicle lean angle sensor
- Traction control adjustable on eight levels
- Electronic EAS (Electronically Assisted Shift)
- Modular mixed structure frame with hand TIG welded tubular steel trellis and aluminum plates
- Ã–hlins suspension with electronic control (F4 RR)
- Brembo monobloc brake calipers (model M50 on the F4 RR)
